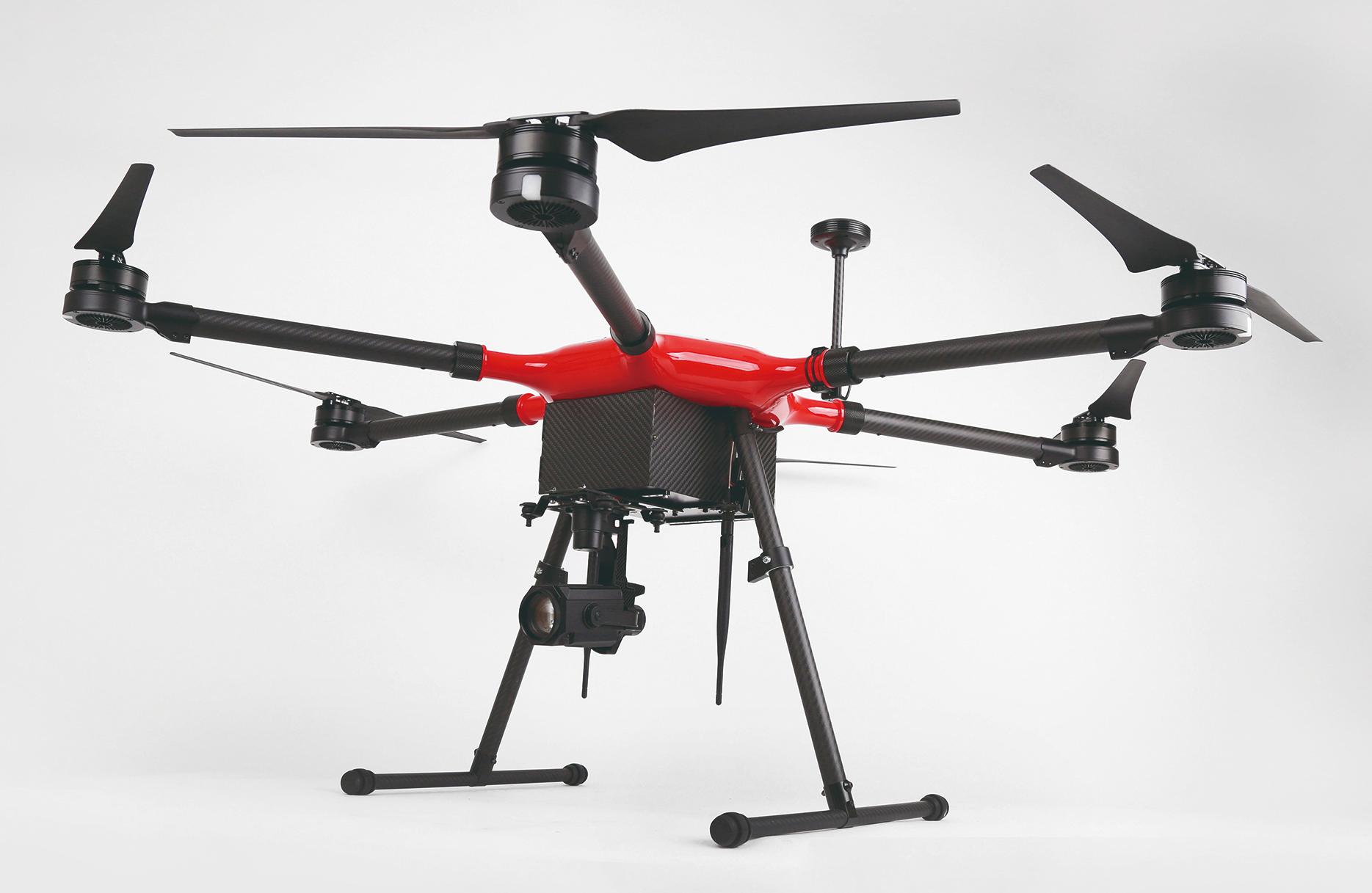

V1100 PRO Reliable Industrial Application Expert
V1100 folding UAV for industrial application is equipped with dual-frequency ultra-long distance transmission system and safe and reliable intelligent flight control system with ultra-long battery life. Industrial application APP software, simplified operation, safe and efficient operation.
FlightSafety | Foldable design | 60-min flight duration | 10KM video transmission | IP43
The innovative design makes the aircraft arms and landing gear all foldable and portable. Easy to assemble and quickly start the job
30X Optical Zoom Lens
The ultra-long-range inspection enables you to clearly observe the details of the object. Besides, the long-range monitoring makes powerline and communication inspection, traffic patrol, bridge inspection and so forth much safer and more efficient.
Thermal Infrared Camera
Based on image and temperature algorithm, the camera enables you to identify targets in bad weather conditions.
Low-light Night-vision Camera
Suitable for low-light environments, it helps you to receive high definition, low noise images, it is widely used in military and security sectors.
Widely used in agriculture, forestry, and crop production sectors. Precise information could be provided to disaster evaluation in these sectors.
A reliable flight control system
The V1100 multi-rotor flight control system adopts the latest control and navigation algorithm, which can realize real-time data verification for each other. Combined with the new internal shock absorption structure design, it gives the aircraft high reliability.
Large Payload, Triple Safeguard
With a powerful load expansion function, it can be used in a wide range of applications with highly integrated devices. The fuselage adopts closed design, IP43 three - proof capability, and has industrial-grade waterproof dustproof and anti-corrosion ability.
Industrial Application Software
To meet special requirements in many industrial applications, we developed the professional APP for V1100 that greatly simplifies the flight operations.
HD Image Transmission
V1100 integrates the advanced 2.4G and 5.8G dual-frequency long-range video transmission system, which makes the maximum video transmission range as long as 10KM (5KM CE). Long-wavelength, strong anti-interference ability, stable and reliable transmission.
Long Fight Duration
The battery system is made of 25 000 mAh batteries, providing a maximum of 60-min flight duration(empty payload, zero wind and hovering conditions).
High-brightness Display Screen
Display screen with a maximum brightness of 2000 cd/m², It's about twice as bright as ordinary mobile devices, and it's still visible in direct sunlight.
|Diagonal Wheelbase :||21x7 inch|
|Diagonal Wheelbase :||1133mm|
|Overall (L xWx H)||Unfolded 1200 x 1050 x 480mm / Folded 600 x 480 x 480mm|
|Weight||Standard takeoff weight 10kg (with battery) / maximum takeoff weight 15kg|
|Max Ascent Speed||5m/s|
|Max Descent Speed||2m/s|
|Max Horizontal Flight Speed||GPS Beginner Mode:5m/s; Common Mode:8m/s; Altitude Hold Mode:15m/s|
|Max Angle Of Inclination||GPS Mode: 30°，Common Mode: 30°， Pose Mode: 30°|
|Max Speed Of Rotation Angle||120°/s|
|Max Wind Resistance||8m/s|
|Hovering Accuracy||Vertial: +0.5m(when GPS psitioningorking) Horizontal: +0.1m(whenGPS positioningworking)|
|Flight Time||No payload: Standard flight time 60 minutes|
|Working Temperature||10℃ to +40℃|
|GNSS||PS/GLONASS or BDSS/GLONASS dual-mode and dual-sink|
|Stabilization System||3 axis (Pitch, Roll, Horizontal)|
|Controllable Accuracy||Static: +0.008°; Motion: +0.02°;Shake-proof: +0.008°|
|Controllable Range||Pitch: -110°~ +60°; Horizontal: +150° ; Roll: +10°|
|Max Controllable Speed||Pitch: 30°/s; Horizontal: 30°/s; Roll: direct control angle|
|Sensor||1/2.3 SONY IMX117 CMOS|
|ISO Range||100-3200(Video) / 100-1600(mage)|
|Video Resolution||4K 30fps|
|Photo Resolution||3840 x 2160|
|Zoom Ratio||30x optical zoom|
|Zoom Speed||About 2.0s|
|Horizontal View||59.8°- 3.0°(Wide Angle t Telescopic)|
|Close- shot Distance||10 - 1500mm(Wide Angle- Telescopic)|
|Video Storage Maximum||64Mbps|
|Compress Standard||H.264/ H.265|
|Support Micro-SD||Micro-SD Card (maximum 128G, transmitting speed is C10 and above or UHS-1)|
|Battery type||LiHV 12S|
|Screen||7.86inch; Resolution: 2048×1536; Brightness: 2000 cd/m2|
|Working frequency||2.4GHz & 5.8GHz dual frequency|
|Internal storage||RAM: 4G; ROM: 16G|
|Signal effective distance||About 10KM (open area, no electromagnetic interference)|
|Video output interface||HDMI|
|Built-in battery||7.4V 9000mAh LiPo 2S|
|Memory card type||Maximum support for 64GB microSD card|
