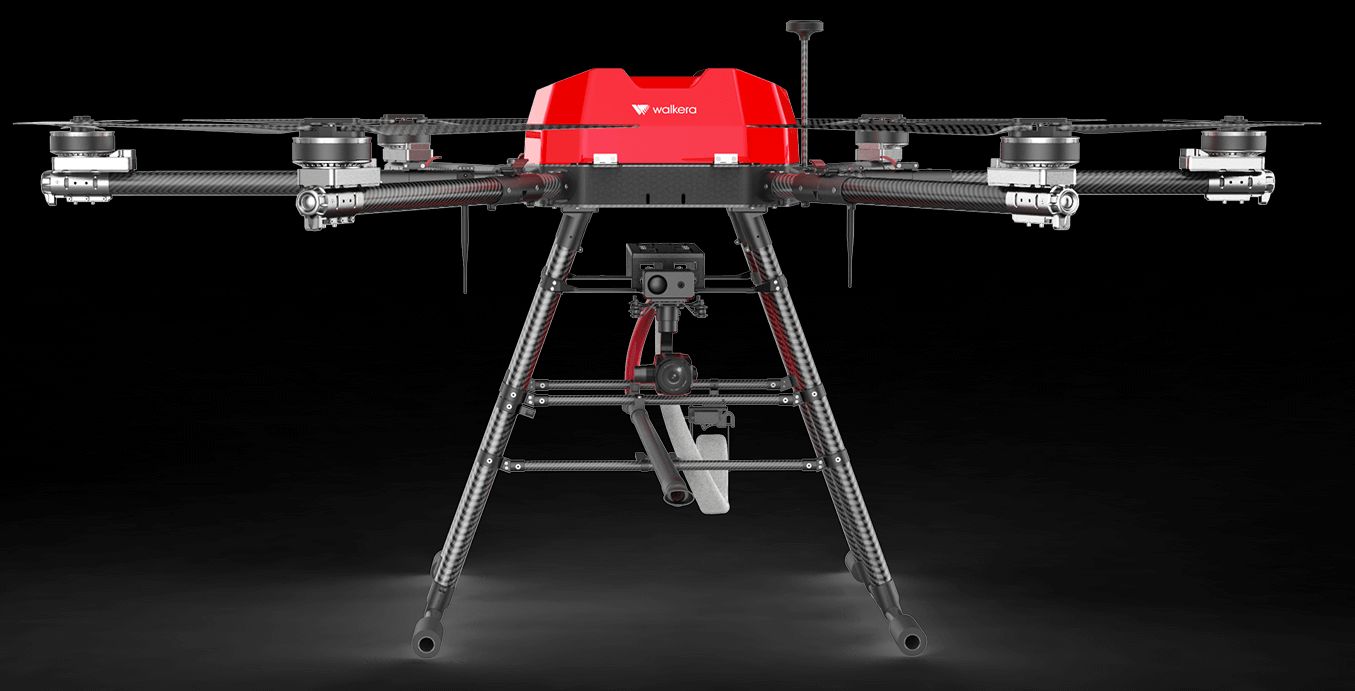

Six-axis Heavy Load, Fire Emergency Rescue Drone
The WK-1800 six-axis fire-fighting drone has a large load capacity, high wind resistance and higher dispersing accuracy. It is designed for dry powder spraying, hose mooring, dropping and launching dry powder bombs/rockets. Portable folding body design, short startup time, can quickly reach the high-rise fire scene. Supports mounting a variety of devices, including a 30x zoom camera, high definition thermal camera, dry powder fire extinguishing tank, dropping fire extinguishing bomb, sprinkler, searchlight, megaphone, etc.
Fire extinguishing bomb with night vision targeting system
The ultra-strong load and anti-tremor design, with the high magnification telescope and the high frame rate night vision camera, have high launching precision. it can launch the fire extinguishing projectile accurately in the complex fire weather environment.
The real-time target control points are displayed on the ground control points, which greatly improves the accuracy of shooting and improves the efficiency of rescue
- Fire extinguisher maximum range: 40 meters
- Extinguishing agent type: ABC Superfine dry powder
- Single shooting area covering of 9 cube meters
- Night vision targeting system, APP Cross Aiming Star
Infrared obstacle avoidance
FE15 firefighting drone uses infrared TOF technology, it can recognize obstacle 5m away in the front and then stop fly forward by intelligent obstacle avoidance system which works under high-precision sensors.
30X optical zoom camera
The standard package comes with a 30X optical zoom camera. It can monitor the fire location in detail over a long distance, then help you to make a correct rescue plan. You can load different types of equipment according to different needs, like Infrared thermal imaging camera and low light night vision camera.
Folding body design
The machine’s arms are designed with sux axis transverse folding and embracing structure, and its structure is compact and firm. After folding, the whole machine is embraced, reducing the occupied area of the aircraft, saving the time of assembly for the staff to reduce the difficulty of packing, and greatly reducing the requirements of the transportation tools.
Heavy payload, long flight time
The design of the six-axis rotor structure improves the flight power, which can load up to 20 kilograms. It can carry fire-extinguishing projectile and other rescue equipment. The battery uses high performance and high energy density power battery and equipped with a battery management unit. The low-temperature performance of the core is optimized and the maximum load flying time can reach 35 minutes.
-
50 minutes of flight time
-
20 KGS Max payload
-
APP Cross Aiming Star
Lidar Ranging
Environmental awareness, intelligent obstacle avoidance
Using laser radar technology, the intelligent obstacle avoidance system created by high-precision sensors, laser ranging up to 100 meters, can identify obstacles of 3-15 meters (adjustable) in the front direction and brake and decelerate to prevent misuse The risk to protect your flight safety. The dual protection of obstacle avoidance and ranging makes your flight safer and increases the probability of rescue.

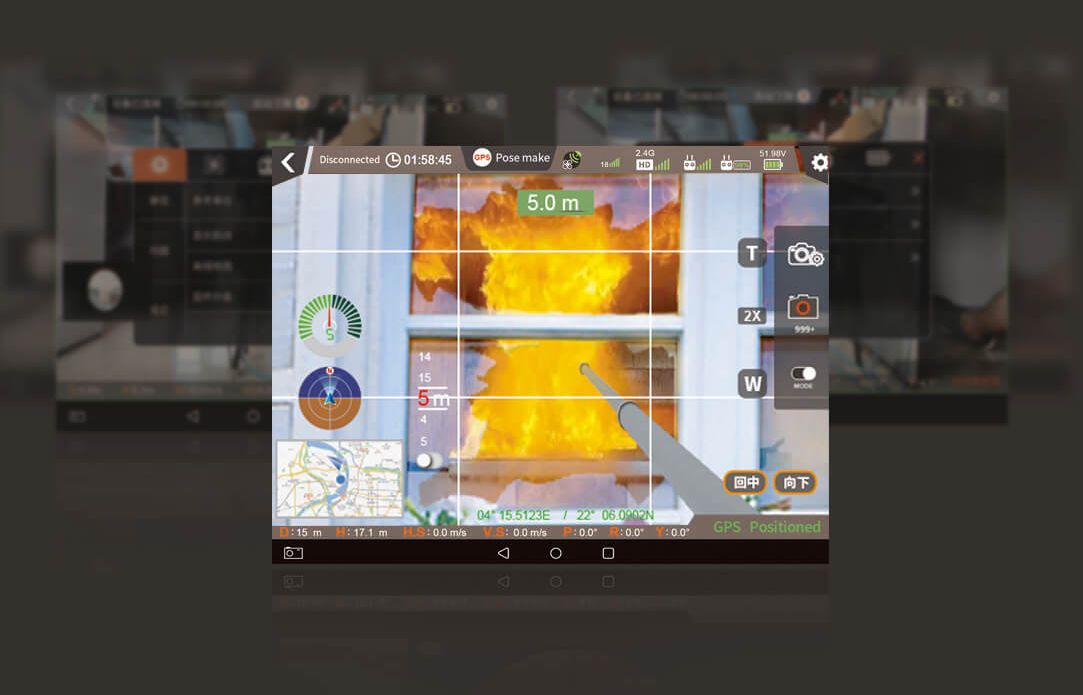

Customize APP
Simple operation and handy
For the special needs of firefighting and rescue, our APP specially designed for WK-1800 firefighting drones simplifies operations and makes operations easier. The monitoring platform is convenient for operators to count and supervise, check the progress of the operation in real-time, and plan the operation route. Real-time display of operating parameters and flight parameters, etc.
Customize System
The customized Android system with the deeply optimized WKDrone-ZHUN APP can get rid of the interference of operation jams and complicated information when using ordinary mobile devices, making the operation more efficient and safe; at the same time, the system also supports the installation of other Android apps to achieve more Video editing and sharing functions.

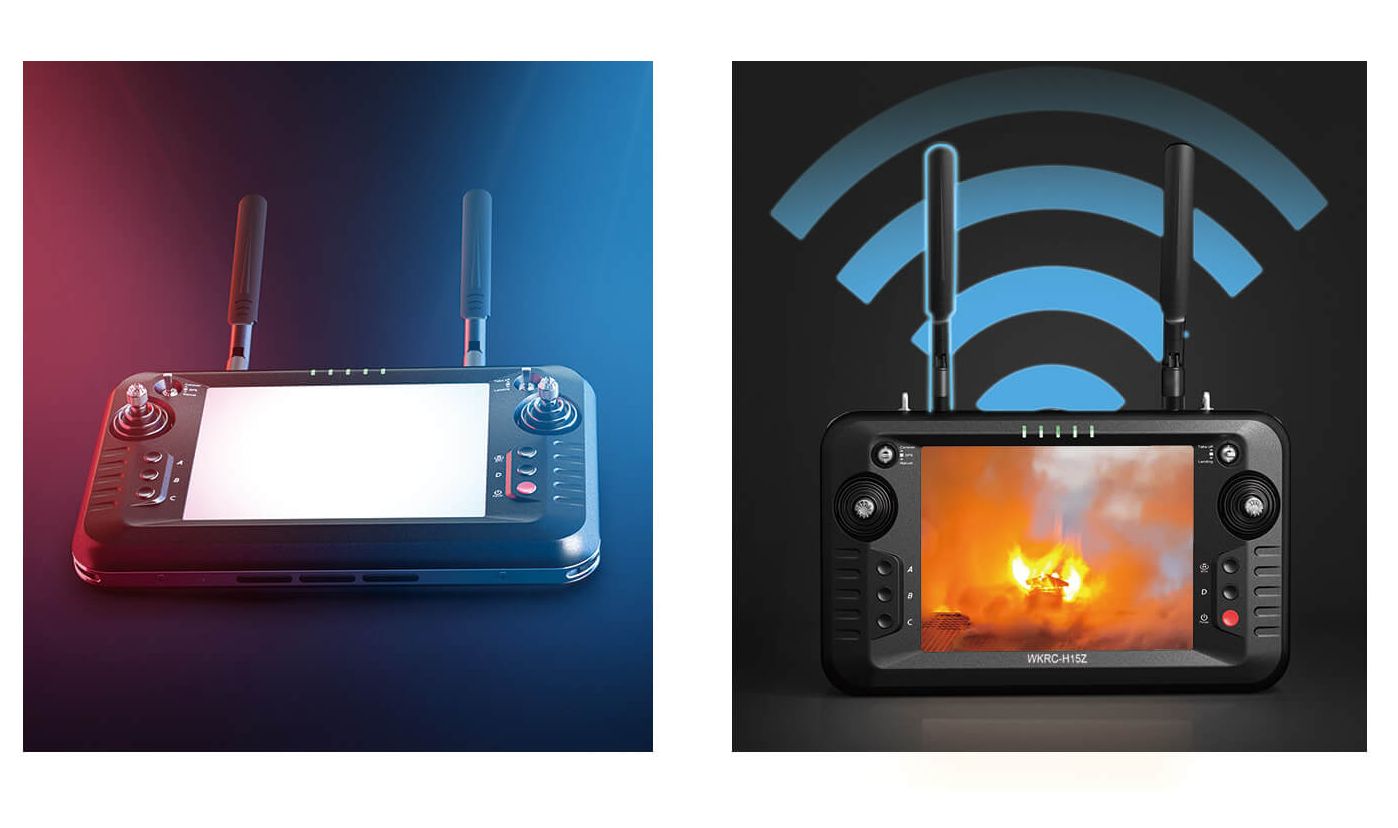

WK-1800 dedicated remote control with screen for fire fighting drone
For the needs of firefighting and rescue, we specially designed the remote control with screen for ZHUN firefighting drones. The remote control with a 7,85-inch screen combines portability and highlight display. It can also present clear images under strong direct light. Combined with the built-in APP, let you Get rid of the interference of complicated information when using ordinary mobile devices, and work more easily and efficiently.
Highlight display
The remote control integrates a 7.86-inch 2K high-brightness display with a maximum brightness of 2000 cd/m², which is about twice that of ordinary mobile devices. It is still clearly visible under strong direct light, making the operation safer and more reliable.
HD video transmission
The remote control is equipped with an advanced 2.4G and 5.8G dual-frequency long-distance transmission system, wavelength, strong anti-interference ability, effective control distance up to 6KM, stable and reliable transmission.
