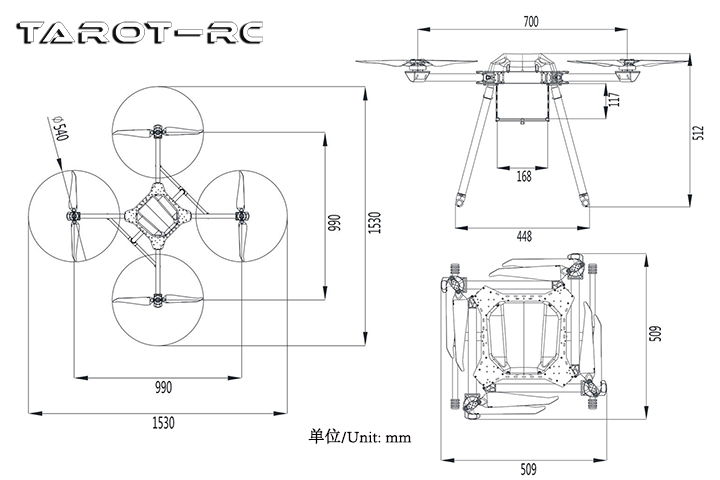

| Frame Parameters |
|---|
| Parameter name | Parameter value | Parameter name | Parameter value |
|---|---|---|---|
| Empty aircraft weight | 3.52kg | Wheelbase | 990mm |
| Battery weight | 2.32kg | Deployed wing length | 1530mm |
| Take-off weight | 5.84kg | Folding size | 509mm |
| Max. wind resistance | Force 6 wind | Center plate diameter | 261mm |
| Flight distance | 4000m | Frame height | 512mm |
| Flight altitude | 3000m | ||
| Flight mode | Altitude hold, Auto, GPS hold, Loiter ,one-key return,etc. | ||
| Test environments | Sunny.35°C. Wind force 2 | ||
| Drone endurance length is related to the test environment and battery capacity | |||
| Unloaded flight | 40 min,10 sec. | ||
| Fully loaded flight | 3kg 20 min,30 sec |
Product Description:

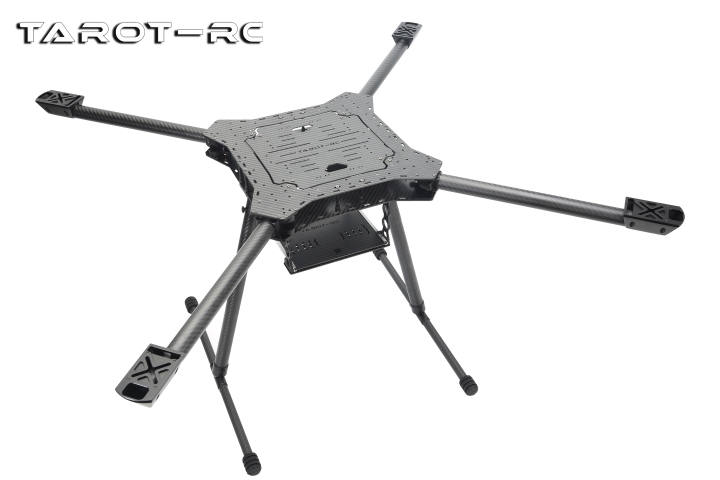

·Tarot's new quadcopter is a Multi-Rotor UAV Frame designed for professional aerial photography users;

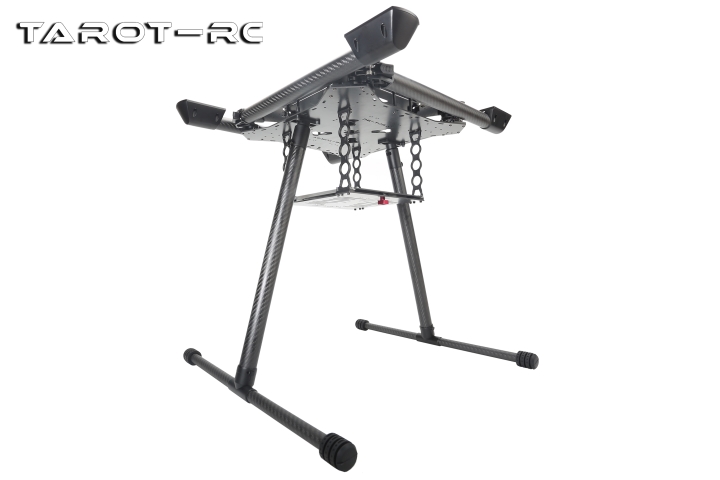

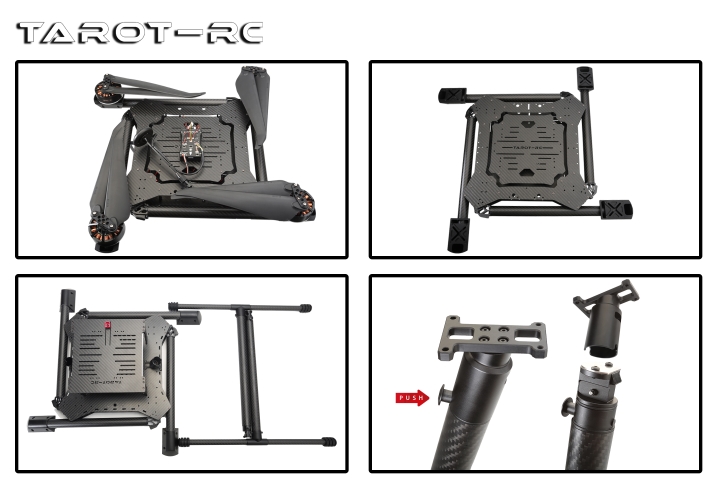

·Novel folding landing gear (can be converted to quick release T-landing gear), and arm folding design;
·Overall lightweight, easy to carry and other features;

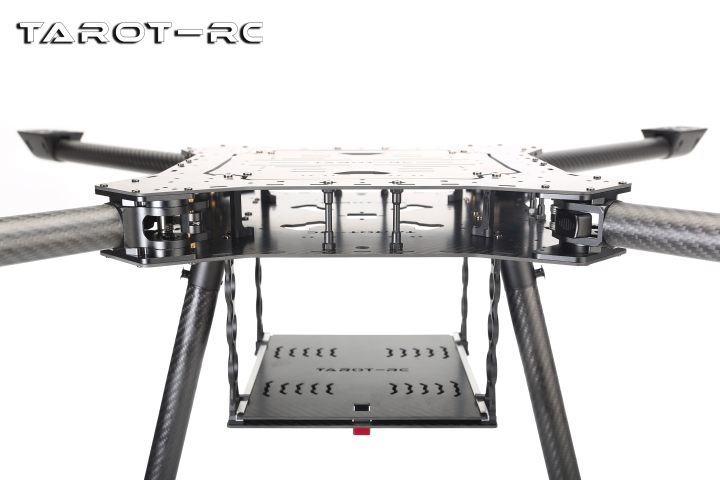

·Larger center plate and battery compartment space makes power supply, ESC and other wiring equipment faster and more convenient;
·Adequate mounting space for various flight control systems;
·Empty aircraft take-off weight about 5.8KG, maximum additional load 3KG;
·Easy to carry DSLR and other aerial photography equipment, with 40+ minutes of unloaded long endurance flight time;
·Upgraded configurations can increase flight endurance.
Suggested electronics:
EMAX Multi copter motor MT5210-290kv CCW
EMAX Multi copter motor MT5210-290kv CW
Wooden Propeller, CCW 20x6
Wooden Propeller CW, 20x6
27000 6s1p 22,2V 5/10C battery (same weight as the manufacturer suggested 22Ah battery)
Estimated flight time 50 min, with max. payload 3kg around 25min.
-
