H16 Transmitter Set specifications:
- Number of channels: 16 channels
- Frequency: 2.400-2.483GHz
- Working voltage: 4.2V
- Working Current: 100mA
- RF Power: 20DB@CE/23DB@FCC
- Modulation: New FHSS
- Weight: 1034g
- Firmware: APP online
- Dimensions: 272*183*94mm
- Duration: 6-20 hours

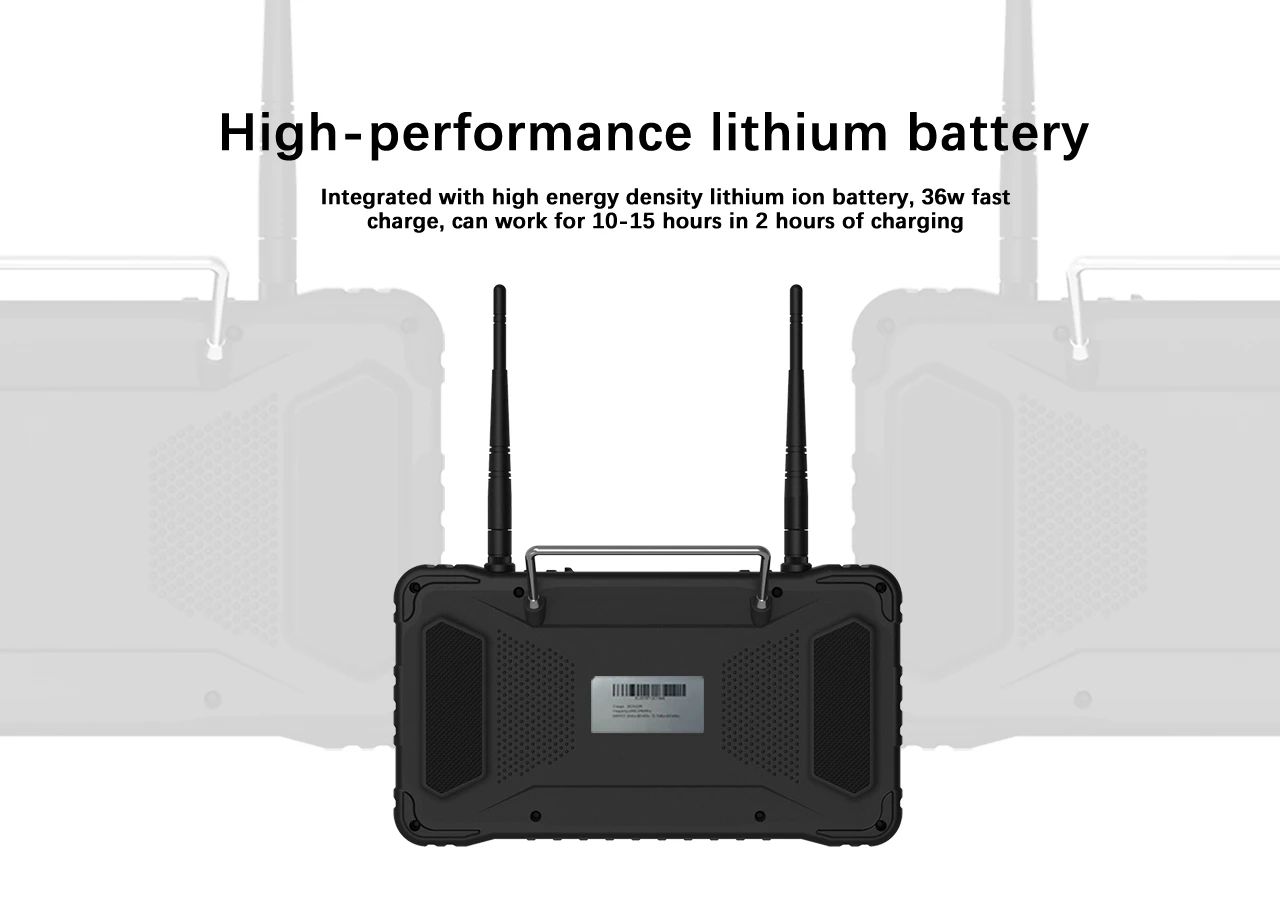

- Battery Capacity: 20000mA
- Charge Port: Type-C
- Application: Helicopter,Fixed wing,Quadcopter,car boat

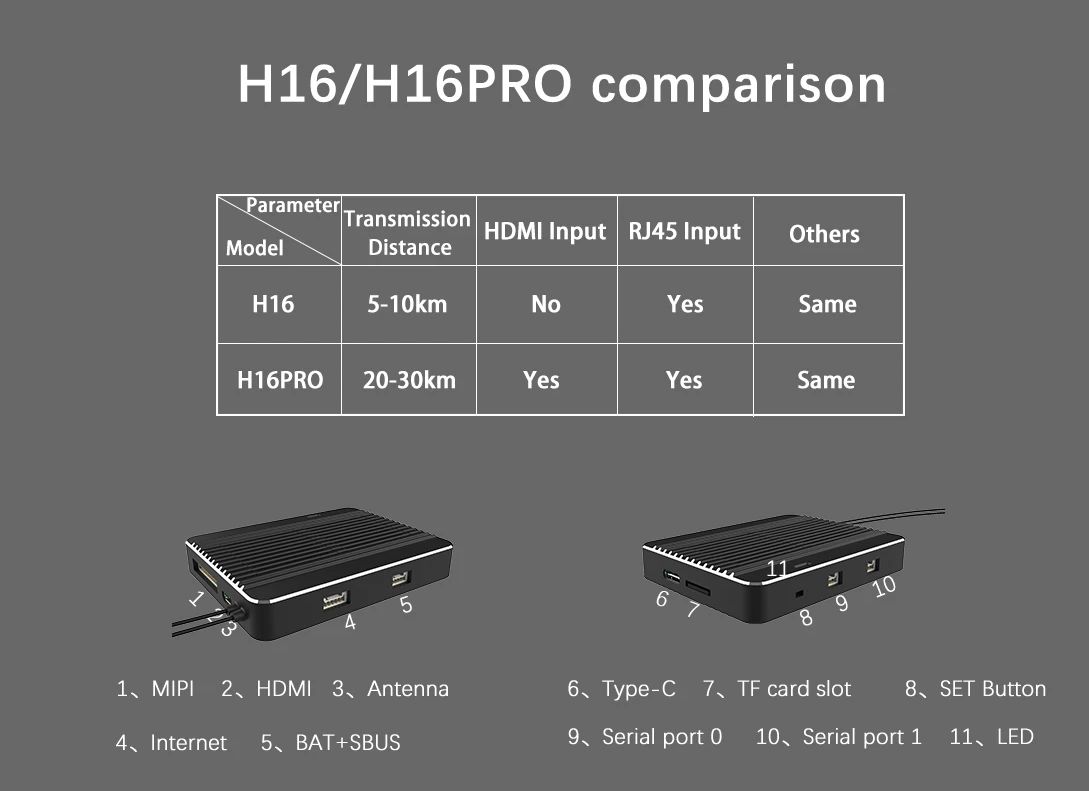

Receiver and Camera:
| R16 | MIPI |
| Working voltage: 7.2-72V | Working voltage: 14-72V |
| Number of channels: 16CH | Working Current: 140mA (LED lights on) |
| RF Power: 20DB@CE/23DB@FCC | Working Current: 14mA (LED lights off) |
| Size: 76*59*11 MM | Size: 102.1*42.6*36.5 MM |
| Weight: 90g | Weight: 55g |
Package Includes:
- H16 Pro Transmitter
- R16 Receiver
- MIPI Camera with LED lights
