S.HUB Mini 4 kanavan PWM konvertteri, S.Bus/S.bus2

Konvertoi 4 S.Bus signaalia PWM signaaleiksi. Voit tällä asettaa S.Bus servojen käytettävät kanavat tai käyttää neljää tavallista servoa S.Bus vastaanottimella (kanavat 1-4, 5-8, 9-12 tai 13-16).

Tunnistaa automaattisesti S.Bus signaalin ja asettaa taajuuden sen mukaan. Tehokas HPB portti virransyötölle, joka tukee, jopa 15A virtaa. Kytketty rinnan S.Bus portin kanssa, joten voi antaa virtaa myös vastaanottimelle tai toisinpäin (normi servoliitin on suunniteltu n. 5A virtalle)

Set used S.bus channels and use 4 normal PWM servos with an S.Bus receiver.  High power HPB port for 15A current and normal servo (S.bus) port for 5A current. These two are connected in parallel, so HPB port can power the receiver and servos in it too.

• Dimension : L 37.5 x W 22.2 x H 11mm
• Weight: 13.2g
• Working Voltage: 4.8V to 8.4V
• Working Current: 10A constant, 15A peak
• Number of serial input: Single
• Protocol supported: Futaba S.Bus / S.Bus2
• Number of PWM output: 4 of 16
• S.Bus output relay: Yes, directly
• Voltage Regulator: N/A
• Casing material: Fully aluminium alloy
• Applications: For the model which controlled via bus.Connect the PWM servos at the distal node

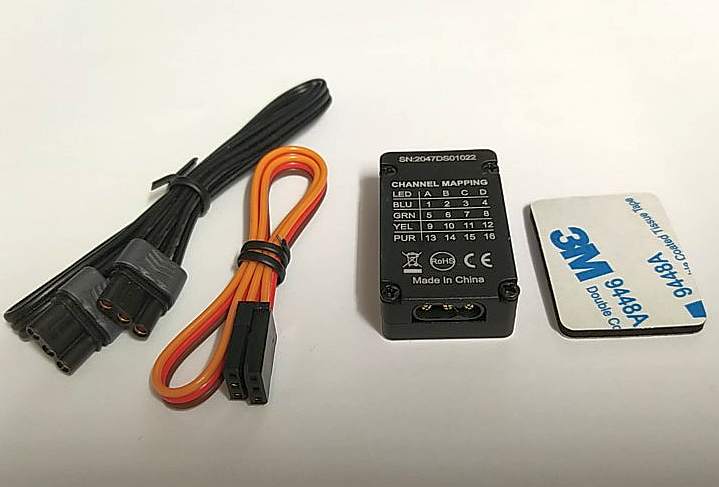

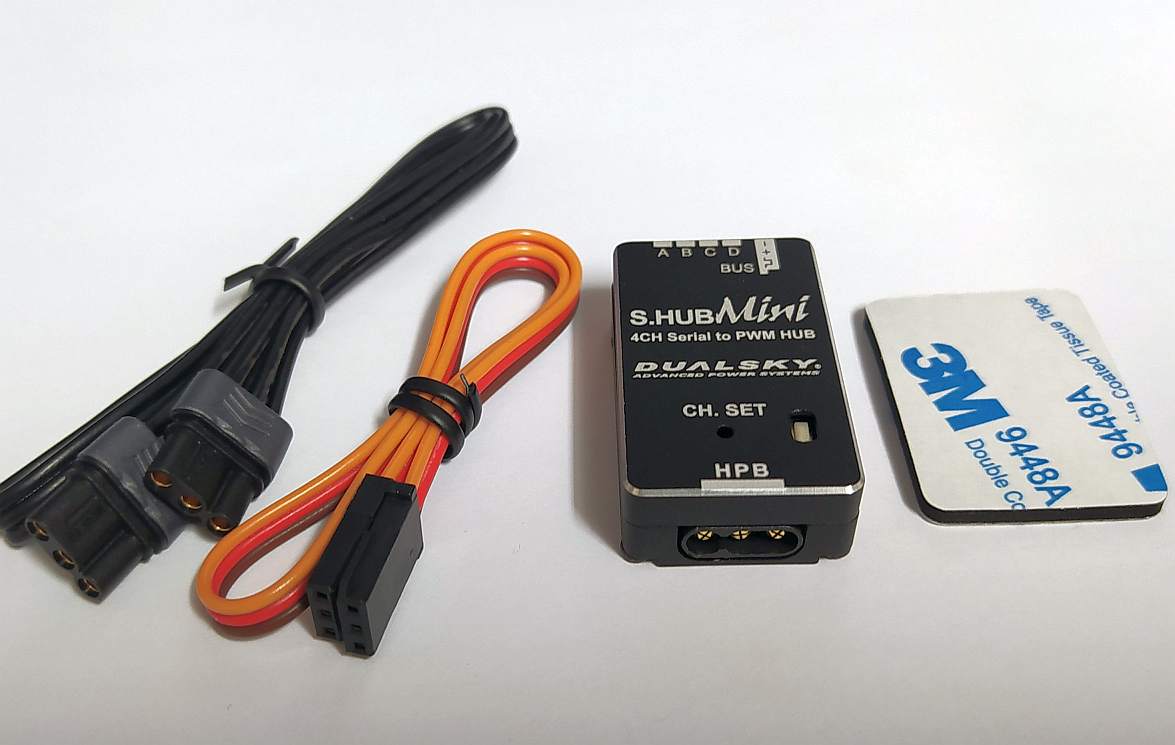

S.HUB mini has four PWM servo sockets, marked as ABCD, and the polarity is as same as the BUS port marked. By the colour of the LED light, we can know which group the current ABCD corresponds to (a group of 4 consecutive channels). Press and hold the setting button, you can change the colour of the LED sequentially and cyclically, to change the output channels to the corresponding group and save automatically.

Output channel setting

The frequency of the ABCD servo output port is automatically synchronized with the input SBUS’ s frequency. When the receiver works in S.Bus 16CH / 18CH mode, the output port frequency is 15ms. When the receiver works in S.Bus 12CH high-speed mode, the output port frequency synchronization is increased to 6ms. Note: Only digital servos can be used in HS mode; There are only 3 groups of channels, and there is no output if select the fourth group. The maximum continuous current of a single servo output port is 2.5A, MAX 5A. Excessive current will damage the pins. Servo output portS.HUB mini's fail-safe strategy is "Hold", and the servo maintains the last position before the signal loss. Based on this strategy, it is not recommended to connect the throttle channel on the S.HUB mini
