Online User Manual: https://www.radiolink.com/bymea_manual
Byme-A Fixed Wing Flight Controller Features:
【Easy Setup】-- Pilots only need to pull both joysticks to outside corners to calibrate without complicated setting parameters.
【Vertical Mode with 1 switch】--With one switch to vertical mode, fixed-wing can be controlled as multi-rotors. Aircraft will remain in the vertical posture and direction automatically.

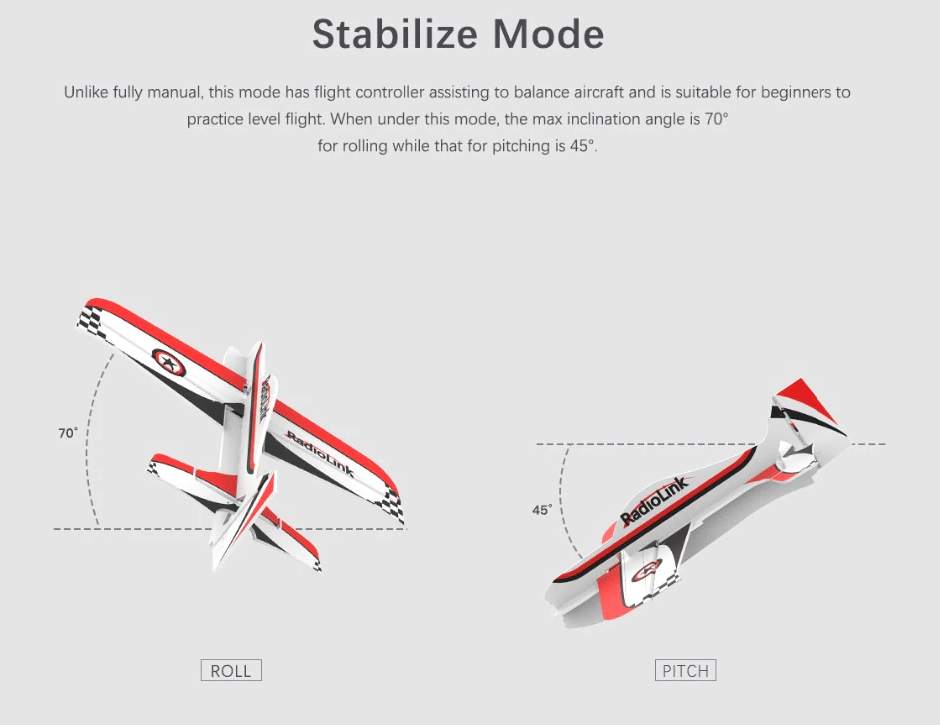

【Stabilize Mode】--Design a shell to reduce interference of airflow during flying, air pressure vent to ensure the accuracy of barometer measurement, built-in barometer sensor to make altitude hold stabilization.
【Acro Mode】--Being the combination of Stabilize Mode and Gyro Mode, this mode makes it easy to realize different freestyles such as rolling, rapid pitching, backward, side flight, and spiral descending.
【Gyro Mode】--Gyro assists to enhance the flight balance but the aircraft won’t level automatically. Pilots with certain experience take the Gyro Mode to practice better control of fixed-wing.
【Manual Mode】--Various freestyles such as backward, roll, loop, snake, and over-low altitude flight can be easily achieved under this mode.
【From Beginner to Master】--Pilots can practice with any of the five flight modes (Vertical/Stabilize/Gyro/Acro/Manual) as wish.

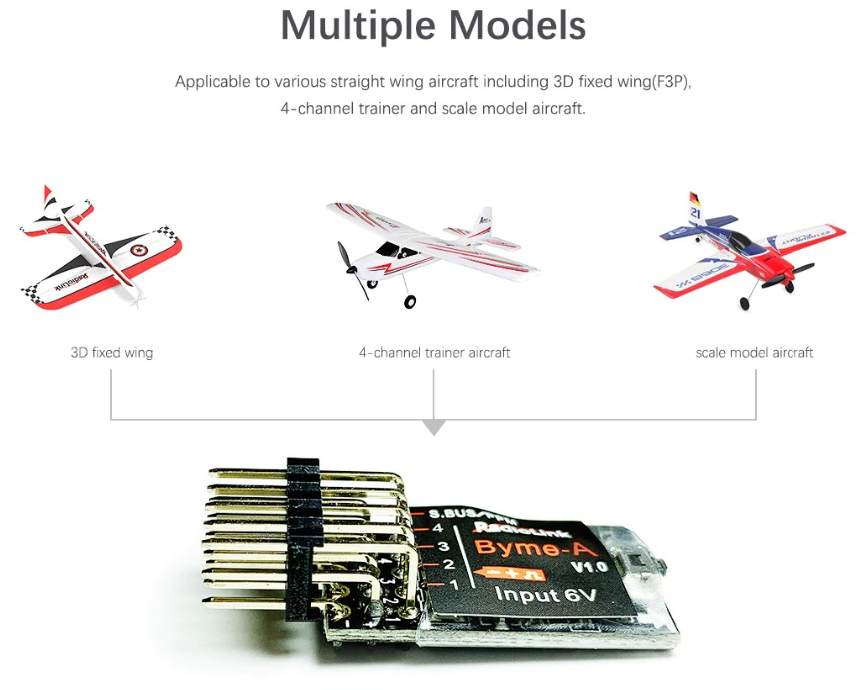

【Multiple Models】--Applicable to various model aircraft including 3D fixed-wing(F3P), 4-channel trainer, and scale model aircraft.
【Compact and Portable, Indoor/Outdoor Flight】-- Byme-A is tiny with a total weight of 4.5g including wires. Even small indoor models can have it.
Byme-A Flight Controller FC Specifications:
-
Product Name:Byme-A
-
Dimension: 35.5*15.5*10.5mm
-
Weight: 4.5g (with wires)
-
Channel Qty: 4 channels
-
Integrated Sensor: three-axis gyroscope and three-axis acceleration sensor
-
Signal Supported: SBUS/PPM
-
Input Voltage: 5-6V
-
Operating Current: 25+-2mA
-
Model Support:3D fixed-wing (F3P),4-channel trainer, and scale model aircraft
Package Included:
-
Byme-A x1
-
Receiver connect cable x1
