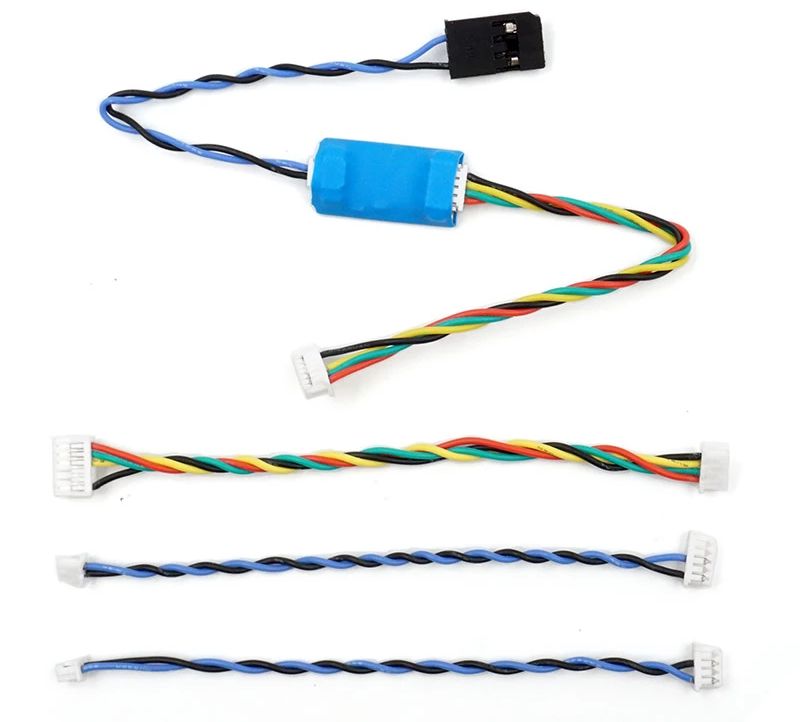

FrSky Taranis yaapu pixhawk telemetry adapter and cables

This cable set and converter can connect FrSky telemetry from your flight controller(Pixhawk1, 2, 3, 4) to the receiver (R9 Slim+, R9, R9M, X8R, X4R, R-XSR, X6R, S8R, RX8R, X4RSB, XSR). Different cables for different receivers and flight controllers.
Malli	Taranis-Yaapu-cables
Varastossa:	0
Hinta:	€ 13,31 Ilman ALV

Arviot

Tuotteen kuvaus
Tämän kanssa ostettu

Specification:
length: 20cm

How to:
step1. Install Yaapu script on your transmitter (Check that LUA Scripts are activated from your Taranis firmware).
step2. Set the protocol of the connected serial port to 10 ( passthrough FrSky telemetry) via mission planner

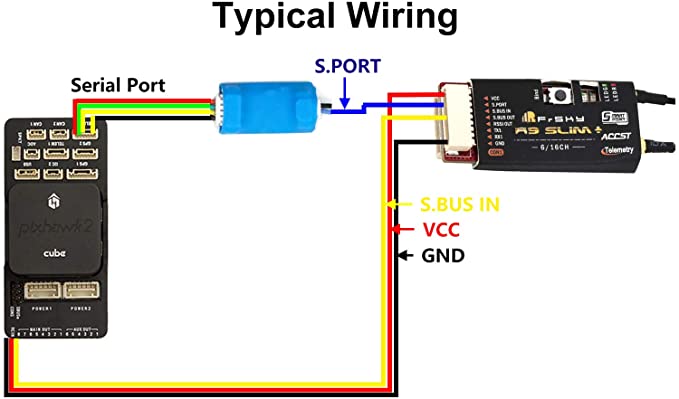

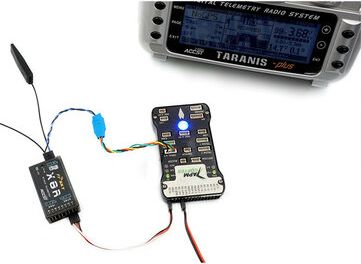

step3. Connect the Pixhawk and receive via this cable
step4. Discovery new sensor in your transmitter

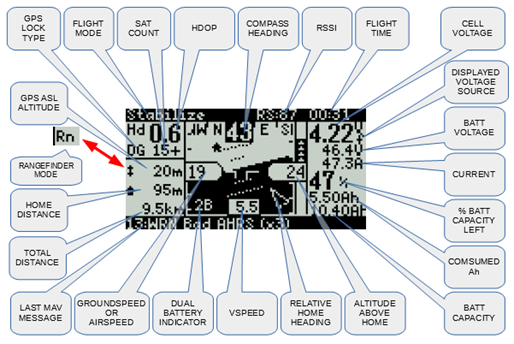

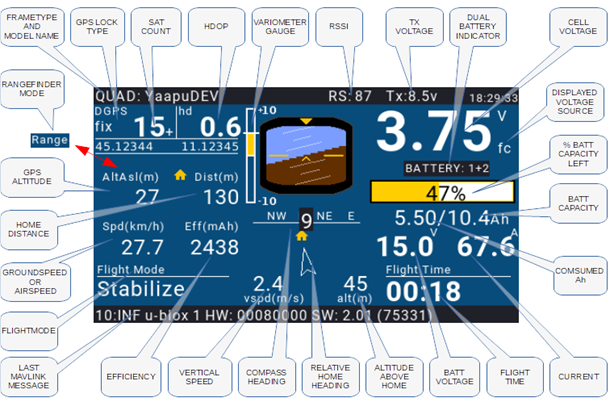

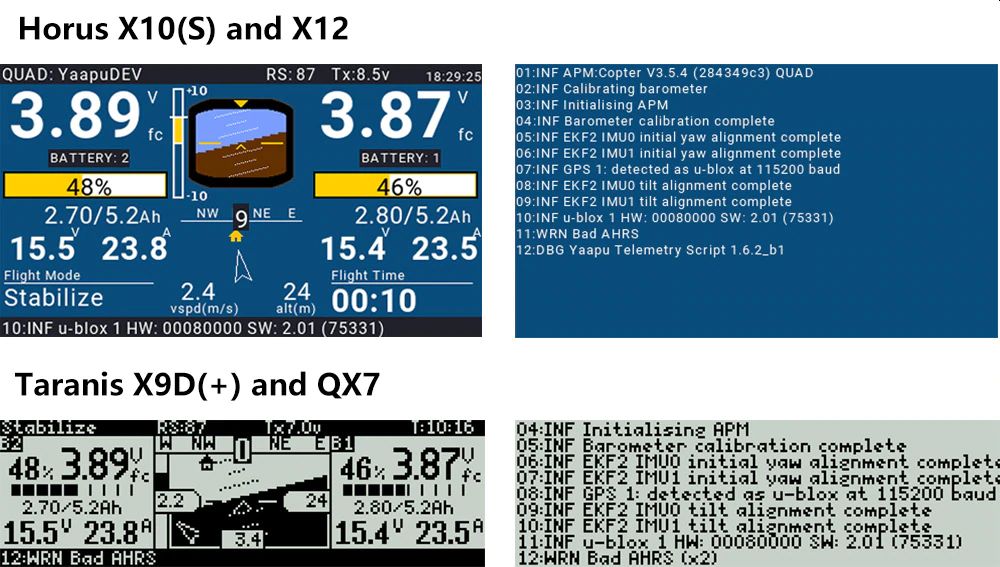

step5. Run the Yaapu script in your transmitter (it will run automatically when you start your TX next time, just press PAGE button long time to get the Yaapu display).

More info: https://ardupilot.org/copter/docs/common-frsky-yaapu.html

Download Yaapu script: https://github.com/yaapu/FrskyTelemetryScript
