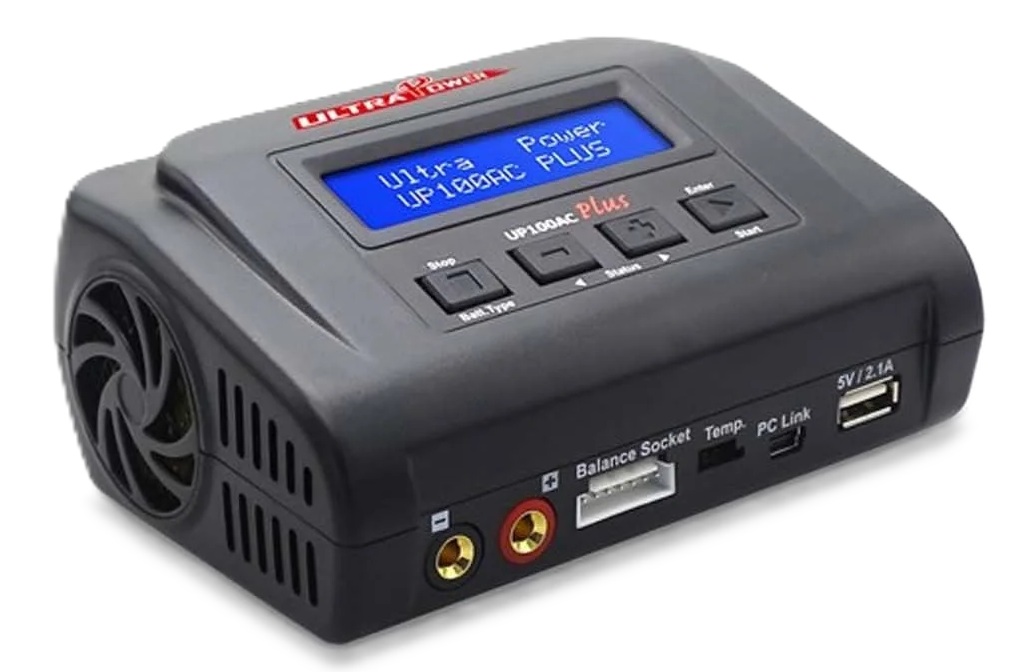

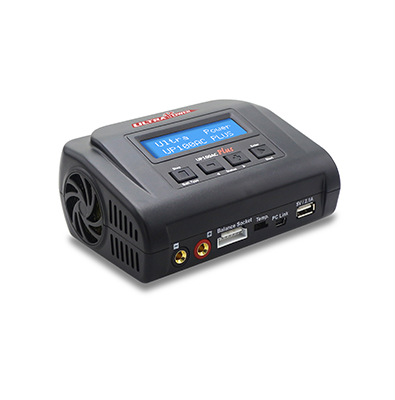

Ultra Power UP100AC Plus – 100W / 10A AC/DC Balance Charger
The Ultra Power UP100AC Plus is a versatile 100 W / 10 A AC/DC charger and discharger designed for RC enthusiasts who need a compact and capable solution for charging and maintaining a wide range of rechargeable batteries.
With an integrated AC power supply supporting 100–240 V as well as 11–18 V DC input, the UP100AC Plus can be used both at home and with an external DC power source. It supports LiPo, LiFe, LiHV and LiIo batteries from 1 to 6 cells, as well as NiCd/NiMH packs up to 15 cells and lead-acid batteries from 2 to 20 V.
The charger provides adjustable charging current from 0.1 to 10 A, with up to 100 W charging power and 10 W discharge power. Individual cell balancing helps maintain balanced voltage across lithium battery packs for more consistent and reliable charging.
Key features
- 100 W maximum charging power
- 10 A maximum charging current
- AC 100–240 V / DC 11–18 V input
- Supports LiPo, LiFe, LiHV and LiIo: 1–6 cells
- Supports NiCd/NiMH: 1–15 cells
- Supports Pb batteries: 2–20 V
- Adjustable charge current: 0.1–10 A
- Adjustable discharge current: 0.1–5 A
- Individual cell balancing for lithium batteries
- Adjustable lithium terminal voltage from 4.18 V to 4.30 V
- Battery meter function
- 10 programmable memory profiles
- USB connection for PC control and firmware upgrades
- Delta-peak sensitivity for NiMH/NiCd batteries
- Compact size: 135 × 95 × 61 mm
- Weight: approximately 430 g
A practical all-round charger for RC batteries
Whether you are charging lithium packs for RC cars, aircraft, drones or other models, the UP100AC Plus combines multiple battery chemistries and charging functions in one compact unit. Its programmable memory can store up to 10 battery profiles, making it convenient when regularly working with different packs.
The built-in battery meter, balancing functions and USB connectivity provide additional control and monitoring options for more advanced users.
