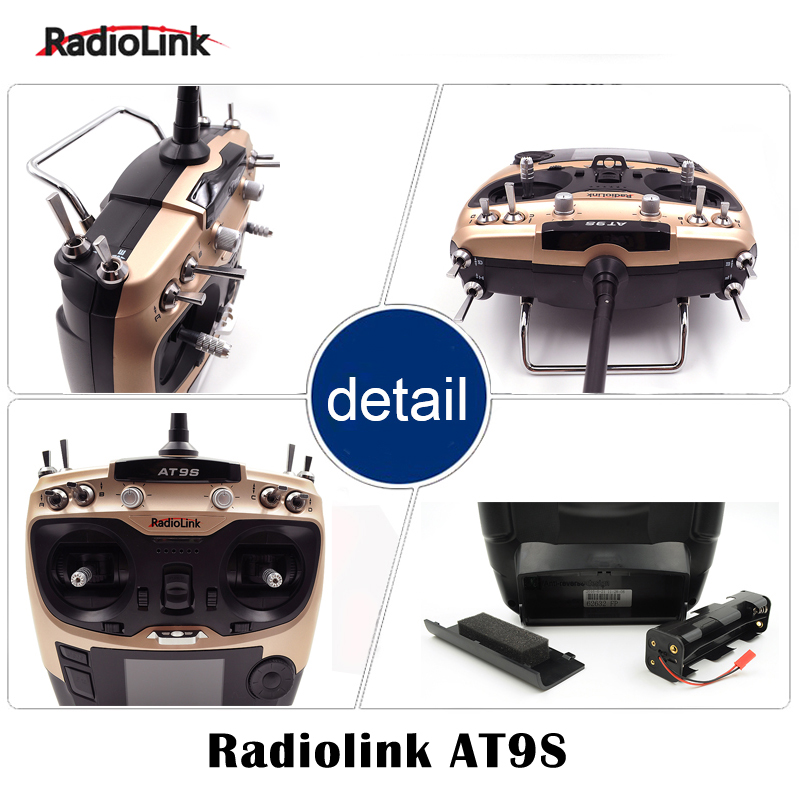

Radiolink AT9S 10ch with receiver

Features
1. Fast response, 3ms only, which is much less than the average 20ms even 10 channels act synchronously.
2. Helicopter 8 swash plate modes, fixed wing 2 airfoils 3 tails, gliders 4 airfoils and 2 tails, multi-copter menu.
3. DSSS and FHSS spread-spectrum technology working synchronously, QPSK modulation support excellent anti-interference performance.

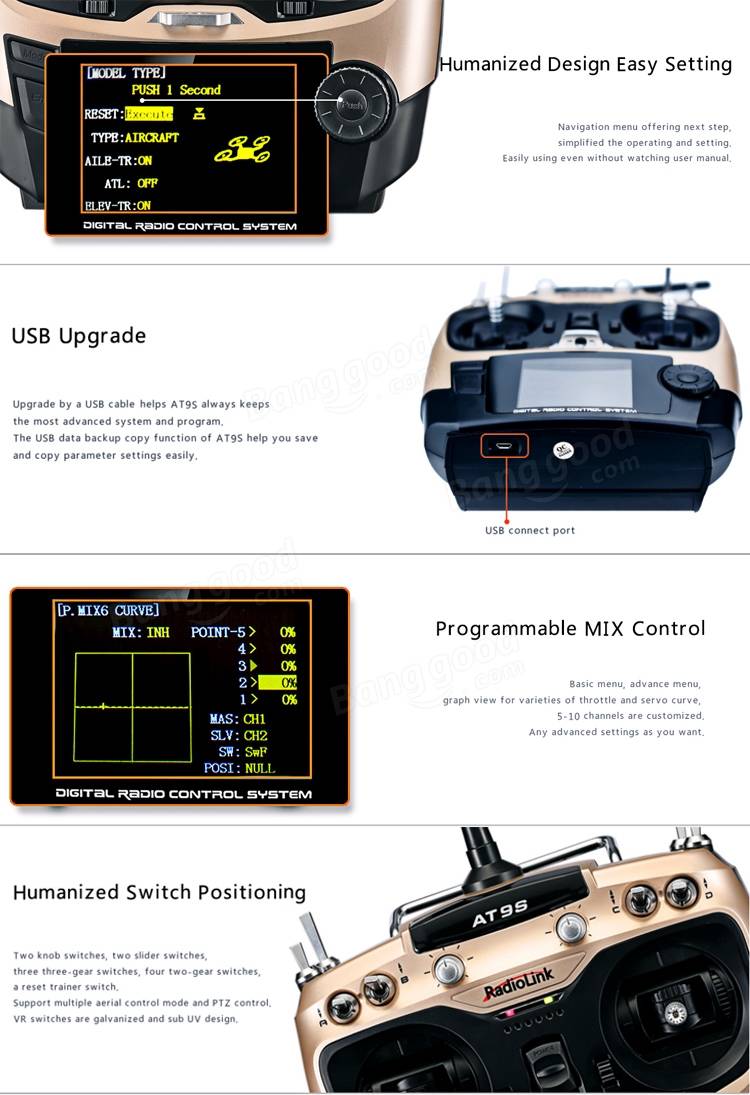

4. Programmable mix control. Basic menu, advanced menu, graphic view for verities of throttle and servo curve.
5. Support S-BUS, PPM and PWM signal.
6. Unique telemetry. Receiver integrates signal strength and voltage telemetry sensor.
 -  Both R10DS and R9DS support extended engine voltage telemetry module PRM-01 and OSD info telemetry module PRM-02. PRM-02 can feedback GPS, SPEED, voltage etc.
 -  AT9S/AT10 display APM or Pixhawk telemetry data.
  - 7.4096 section precision, 0.25us per section, servo anti-shake rudder.
8.Vibration alarm.
9.Support USB online upgrade, the upgrade firmware V1.3.2 add CAR and BOAT model type.
10.Four VR switches, three three-gear switches, four two-gear switches, a reset trainer switch. Support multiple aerial control mode and PTZ control.

Specification
1. Size: AT9S- 183*100*193mm, R9DS- 41*23*14mm
2. Weight: 0.88kg
3. Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)
4. Modulation mode: QPSK
5. Channel bandwidth: 5.0 MHz
6. Spread spectrum: DSSS&FHSS
7. Adjacent channel rejection: >38dbm
8. Transmitter power: <100mW (20dbm )
9. Operating current: <90mA
10. Operating voltage: 7.4~18.0V
11. Control distance: more than 900 meters ground, 1500 meters air, the actual control distance depends on the flying environment
12. Channel: 10 channels
13.Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor
14.Simulator model: under the simulator model the transmitter action turn off, change to power saving model
15.Screen: 2.8 inches 16 colorful screen, 240*320 pixels
16.Support receivers: R9DS(S-BUS&PWM), R10DS and R6DS
