EMAX F4 Magnum II F4 BLHeli32 35A 2-6s VTX Stack

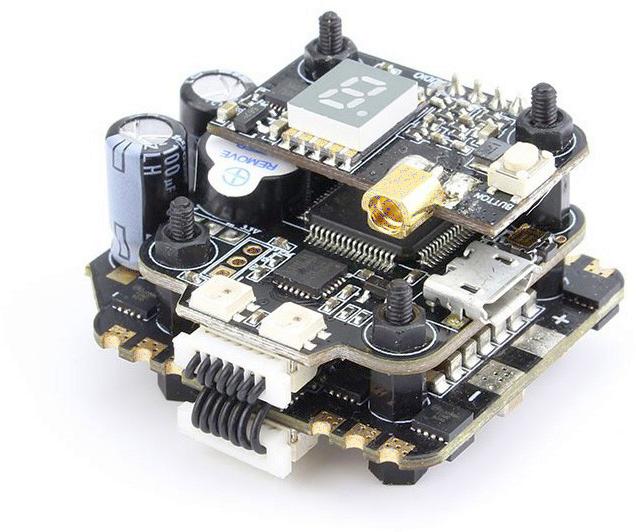

EMAX Magnum II all in one tiny stack!. This little build combines the Magnum mini F4, 4x35A 6s ESC, VTX and Powerboard to a tiny 20x20 stack!. It can't get much easier than this.

Model Emx-Magnum2-stack
Manufacturer EMAX
Currently on stock: 3
Price:   €  92,74
VAT excl.
Reviews

Magnum II stack has all the needed latest FPV electornics in one tiny package. Great for reducing weight or save space. This stack features an F4 FC with OSD, 35A 4-in-1 ESC that supports up to 6s, and a VTX with TBS SmartAudio! All of this in a tiny 20x20 form factor.

Specifications

F4 Flight Controller

  • (OMNIBUSF4 Firmware)
  • STM32F405 MCU
  • MPU6000 accelerometer/gyro (connected via SPI)
  • On-board OSD
  • On-board Buzzer
  • Integrated 5V/3A BEC
  • Dedicated PPM/ Sbus receiver input
  • 30x27mm board with 20mm mounting holes

35A BLHeli_32 ESC

  • Continuous current 35A ( max burst 40A)
  • Supply voltage 2-6S Lipo( 1700kv Motor LIMIT for 6S )
  • STM32F051K6U6 MCU
  • BLHeli_32 firmware,support DSHOT,MULTISHOT,ONESHOT125
  • Top quality MOSFET
  • 3oz high TG PCB board
  • 32x37mm board with 20mm mounting holes.
  • Current Sensor

VTX

  • Frequency band: 5658-5945MHz (FCC Compliant Channels / with HAM unlock)
  • SmartAudio support
  • Channel: 37
  • Transmit power: 13dBm/23dBm(25mW/200mW)
  • Supply voltage: 4.5V-5.5V
  • Antenna port: MMCX

Stack

  • Total weight: 17.21g
  • 20x20mm Mounting Holes
  • 32x37x17g Dimensions

Includes

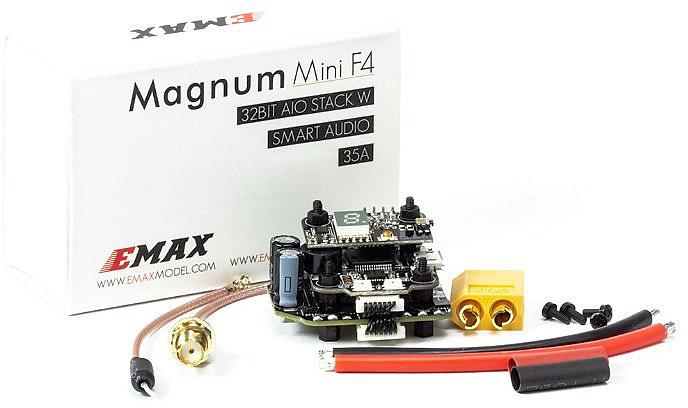

  • 1x EMAX Mini Magnum 2 F4 35A Stack
