Key Features
Super high 12 bit (4096) resolution
Robust output for superb response in extreme maneuvers
Zero dead band assures legendary precision
Full Aluminum case helps dissipate heat
Digital precision provides great accuracy and performance
Ball bearing-supported output 25T shaft
Compatible with all types of Radio system
Pulse width travel is adjustable
Applicable for the 550 class 3D R/C Helicopter.
Technical data
|
Item No. |
H2-MI-BF11S |
|
Type |
Digital |
|
Operating Voltage Range |
4.8-7.4Volts DC |
|
Bushing or Bearing |
Bearing |
|
Bearing Type |
Dual Ball Bearings |
|
Speed (s/60°@6.0V/7.4V) |
0. 063/ 0.053 |
|
Torque oz./in. (6.0V/7.4V) |
111/138 |
|
Torque kg./cm. (6.0V/7.4V) |
8/10 |
|

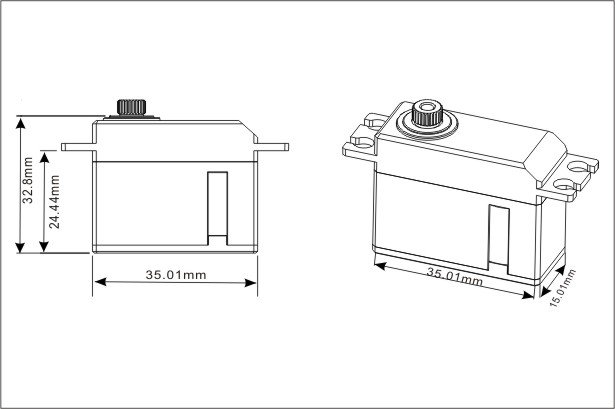

Size in Inches |
1.42 x 0.60 x 1.23 |
|
Size in Millimeters |
35 x 15 x 32.8 |
|
Weight oz. |
1.23 |
|
Weight g. |
35 |
|
Motor Type |
Brushless motor |
|
Control System |
+Pulse Width Control 1500µsec Neutral |
|
Required Pulse |
3-5 Volt Peak to Peak Square Wave |
|
Operating Temperature Range(F) |
14° - 122° |
|
Operating Temperature Range(℃) |
-10° - 50° |
|
Idle Current (@6.0V/7.4V) |
20mA/20mA |
|
No Load Running Current (6.0V/7.4V) |
80mA/100mA |
|
Stall Current (6.0V/7.4V) |
2700mA/3600mA |
|
Dead Band Width |
2µs |
|
Potentiometer Type |
Rotating(Max.220°) |
|
Connector Wire Length |
11.8 in. / 300 mm. OMG wire |
|
Connector Wire Gauge |
25 AWG |
|
Connector Type |
JR |
|
Gear Type |
Aluminium andodizing Titanium gears |
|
Frequency |
330Hz |
|
Shaft |
5.90mm 25T |
