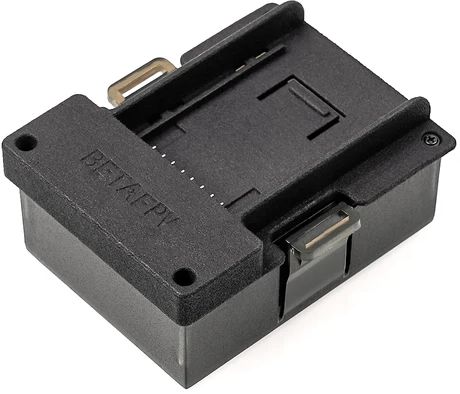

ELRS Nano-micro module adapteri, uusi versio

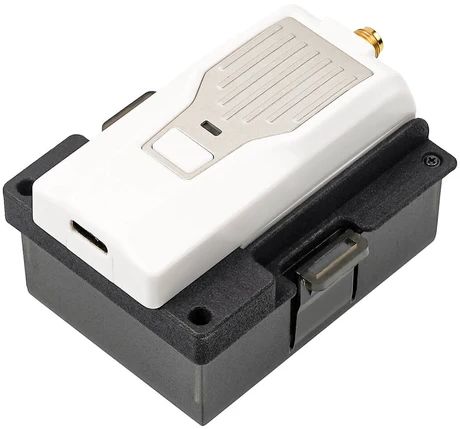

The Micro-Nano Module Adapter connects modules with a Nano port under the JR/Micro port's Radio transmitter. Notably, it supports the recently released ELRS module, ELRS Nano TX Module.

The module adapter is suitable for transmitters with a Micro port (or JR port). For example, Frsky X9D, FUTABA 16IZ, TBS Mambo, Turnigy 9XR, Jumper T18, etc.

Specification

• Item:  Micro-Nano Module Adapter / Micro-Nano Module PCBA
• Size: 65*48*28mm (JR module size）
• Weight: 30.77g
• Input: JR module bay (Micro module bay)
• Output: Nano module bay (Lite module bay)
• Supported radio transmitter: Frsky X9D/X9D Plus/X12S/X10/X10S/X7/X7S,
  Flysky TH9X, Turnigy 9XR/9XR PRO, FUTABA 16IZ, Jumper T16/T18/T18 Pro,
  Radiomaster TX16S/TX18S, TBS Mambo
• Supported TX Module: BETAFPV Nano TX Module, TBS Crossfire Nano TX、Frsky XJT Lite/R9M Lite/R9M Lite Pro.

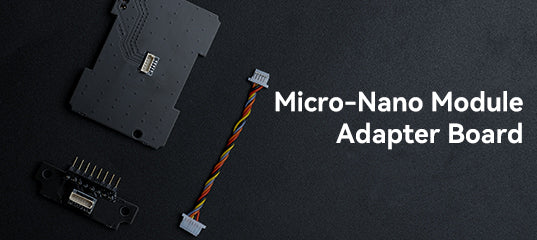

PCBA Only

Micro-Nano Module Adapter (PCBA) is available for those who can print the case for themselves. You can download the adapter case STL file on our technical support page.

Limited Version

The Limited version of this module adapter is only available for the BETAFPV Nano TX Module.

Recommended Part

ELRS Nano TX Module is the first BETAFPV module, which is based on the ExpressLRS project. The ExpressLRS is one of the fastest RC links available while still offering long-range performance.

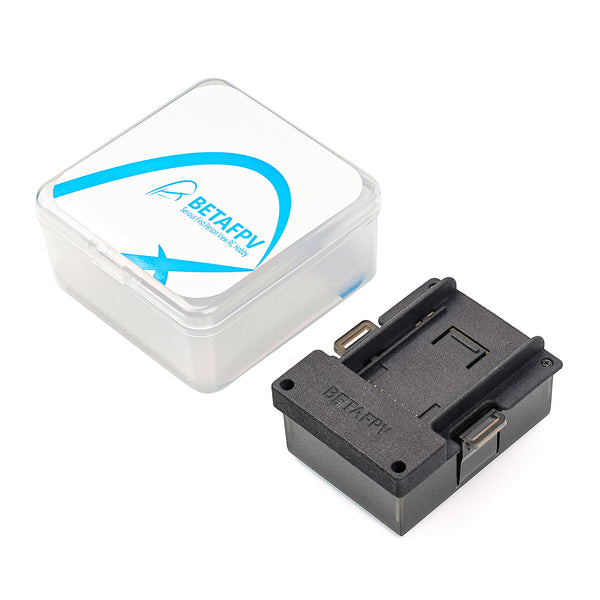

Package

• 1 * Micro-Nano Module Adapter
