Tämä tuote on lisätty maanantaina 06 heinäkuuta, 2015.

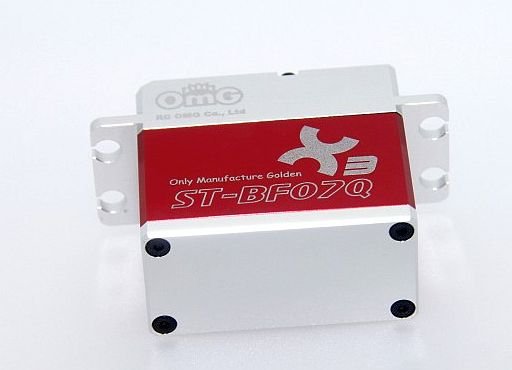

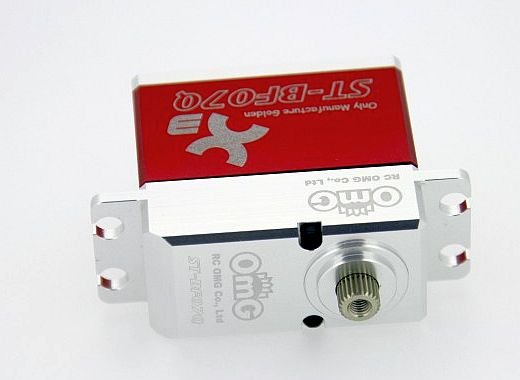

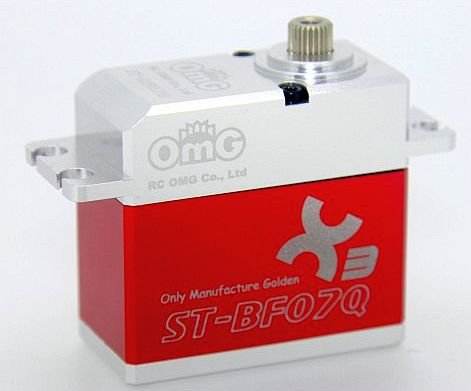

Digital 72g servo, metal gear, H3-ST-BF07Q

H3-ST-BF07Q is the new version of the HDT072070B.

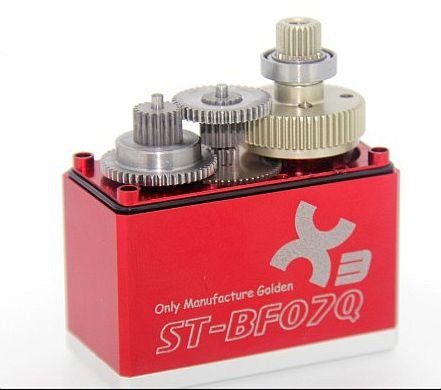

The HDT72070B servo is a powerful, accurate ultra speed precision digital servo with its full metal aluminum case, long wear 7075 Aluminum anodize titanium gears plus 304 stainless steel gears, a precision brushless motor and improved electronics, legendary quality.

  • Speed (s/60°@6.0V/7.4V) 0. 05/ 0.04
  • Torque oz./in. (6.0V/7.4V) 76/90
  • Torque kg./cm. (6.0V/7.4V)  5.5/6.5
  • Size in Millimeters 40 x 20 x 38
Kokoluokka: Standard
Jännite: 6,0-8,4V HV
Malli H3-ST-BF07Q
Merkki OmG
Varastossa: 3
Hinta:   €  103,23
Ilman ALV
€  72,26
Ilman ALV
Arviot

Key Features

Super high 12 bit (4096) resolution

Robust output for superb response in extreme maneuvers

Zero dead band assures legendary precision

Aluminum middle case helps dissipate heat

Digital precision provides great accuracy and performance

Ball bearing-supported output 25T shaft

Compatible with all types of Radio system

Pulse width travel is adjustable

Applicable only for the R/C Car and Drifting Rudder (1:10) and R/C Helis lock tail (700series and larger)



Technical data:



Item No.

HDT72070B

Type

Digital

Operating Voltage Range

4.8-7.4Volts DC

Bushing or Bearing

Bearing

Bearing Type

Dual Ball Bearings

Speed (s/60°@6.0V/7.4V)

0. 05/ 0.04

Torque oz./in. (6.0V/7.4V)

76/90

Torque kg./cm. (6.0V/7.4V)

5.5/6.5

Size in Inches

1.57 x 0.79 x 1.50

Size in Millimeters

40 x 20 x 38

Weight oz.

2.53

Weight g.

72

Motor Type

Brushless motor

Control System

+Pulse Width Control 1500µsec Neutral

Required Pulse

3-5 Volt Peak to Peak Square Wave

Operating Temperature Range(F)

14° - 122°

Operating Temperature Range()

-10° - 50°

Idle Current (@6.0V/7.4V)

5mA/5mA

No Load Running Current (6.0V/7.4V)

180mA/220mA

Stall Current (6.0V/7.4V)

3800mA/4700mA

Dead Band Width

2µs

Potentiometer Type

Rotating(Max.220°)

Connector Wire Length

11.8 in. / 300 mm. OMG wire

Connector Wire Gauge

22 AWG

Connector Type

JR

Gear Type

Titanium gears

Frequency

330Hz

Shaft

5.85mm 25T
