- HD Clarity
- Head Tracking
- Market leader CADDX ecosystem with wide range of cameras, gimbals, repeaters etc.
- See More in Every Flight
- Experience FPV through a spacious 4.5-inch display, delivering HD 1080p 60fps clarity and ultra-smooth motion

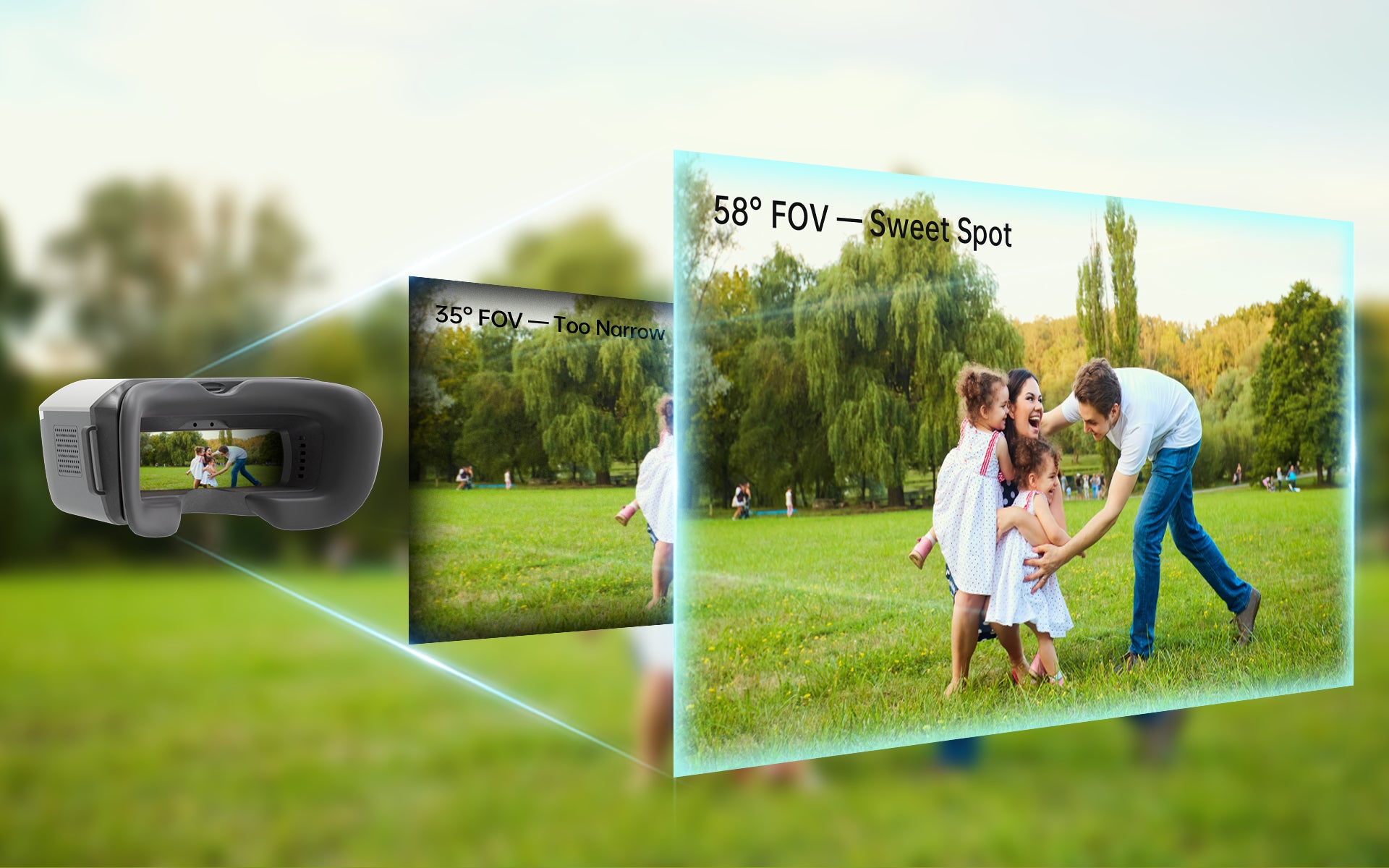

Balanced Vision
Discover the sweet spot in FPV vision—an extended view with no tunnel effect and zero edge distortion

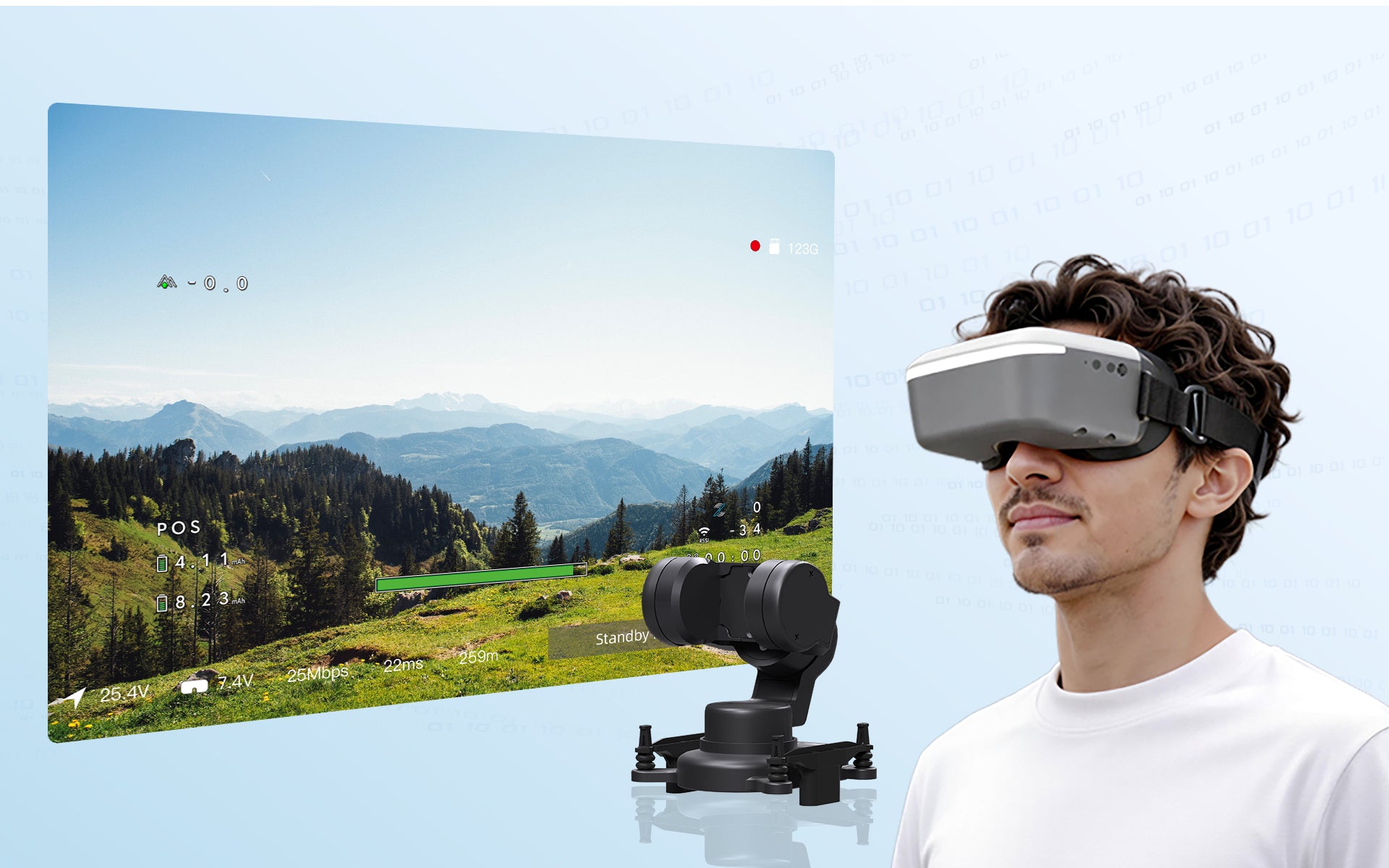

Real-Time FPV Head Tracking
Move your head and the gimbal follows instantly, seamlessly syncing with your goggles for a truly immersive FPV experience
Signal That Reaches Far
Enjoy a reliable FPV connection across extended distances, with stable HD video up to 4KM
Instant Response Smooth Control
32ms Ultra-Low Latency—your inputs and the FPV feed stay tightly in sync for fluid, confident flying
Built for Clear HD Transmission
Optimized for higher-quality data flow, bringing sharper visuals and a more stable HD FPV feed
Built-in Storage
Battery Powered
Customizable Lenses
Record Every Flight Instantly
Easily capture your FPV footage and keep every flight ready to watch again

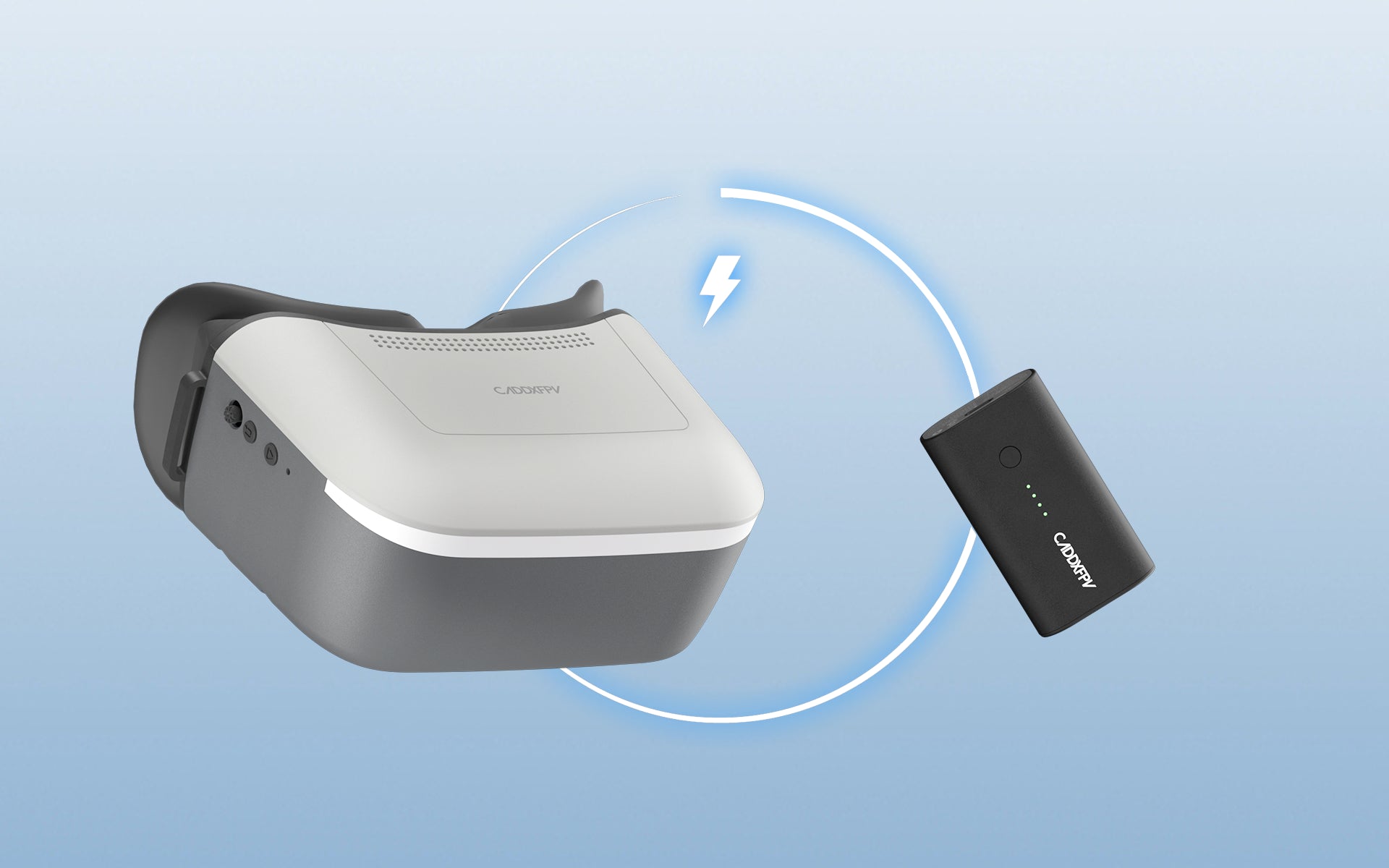

Flexible Power, Extended Runtime
Supports external battery packs for longer FPV sessions
*Battery sold separately.

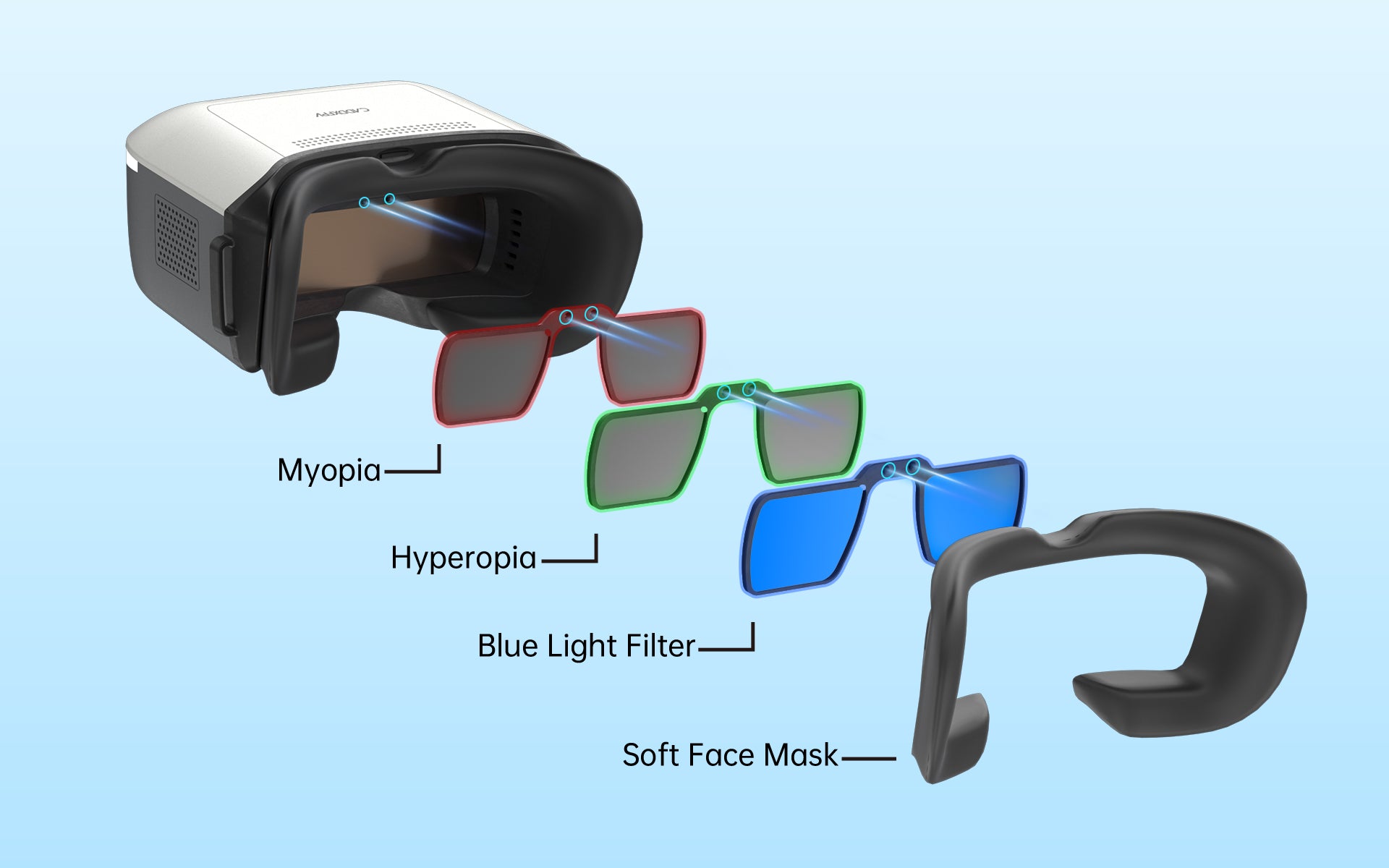

Custom Lenses Clear Vision
Compatible with prescription and blue light-blocking lenses, delivering optimized clarity and visual comfort tailored to your vision
Immersive FPV Experience
Perfect for outdoor flying, exploration, and RC hobbies
SPECS
Name; Ascent Goggles
System: Ascent HD System
Communication Frequency: 5.738.5-5.806.5GHz
Transmission Power (EIRP): FCC:<20dBm, CE:<14dBm, SRRC:<20dBm
I/O Interface: DC5.5*2.1mm, Micro SD Card Slot
Transmission Resolution: 1080p60fps, 720p60fps
Code Rate: Max 25 Mbps
Min. Latency: Average 32ms
Average Gain: 4.9dBi
Polarization: LHCP
Transmission Distance＞4km
Channels 4
Screen Resolution: 1920*1080/60Hz
Screen Material: LCD
Screen Size: 4.5 Inch
Power Input: 6V-25.2V(2S-6S)
SD card: Support 256G
