X-4 mini Quad 10A 4x 100W AC/DC charger (400W DC)

Charge Current: 0.1-10.0A
Cell Count LiPo/LiHV/LiFe/Li-ION: 1-6 Series
Cell Count NiMH/NiCD: 1-8 Cell
Pb Voltage: 2-16V
Four dedicated 100W output channels (DC 4 x 100W, AC 100W combined)
AC/DC, 100- 240V or 19-26V use.

Model GTpowerX4-mini-400W
Manufacturer G.T Power
Currently on stock: 1
Price:   €  75,81
VAT excl.
Reviews

G.T Power X4 mini  10A 4 x 100W DC charger (400W) and 100W total in AC mode.

Product Description

Mini size 4 x charger. Four complete charging circuits, each with 100W DC power and shared 100W integrated power supply. Power from the integrated AC (100-220V) power supply can be shared dynamically (power is shared equally) or first priority (first battery in charging gets the highest power).

At the field, with 19-26V DC power, you can charge at  4 x 100W power.

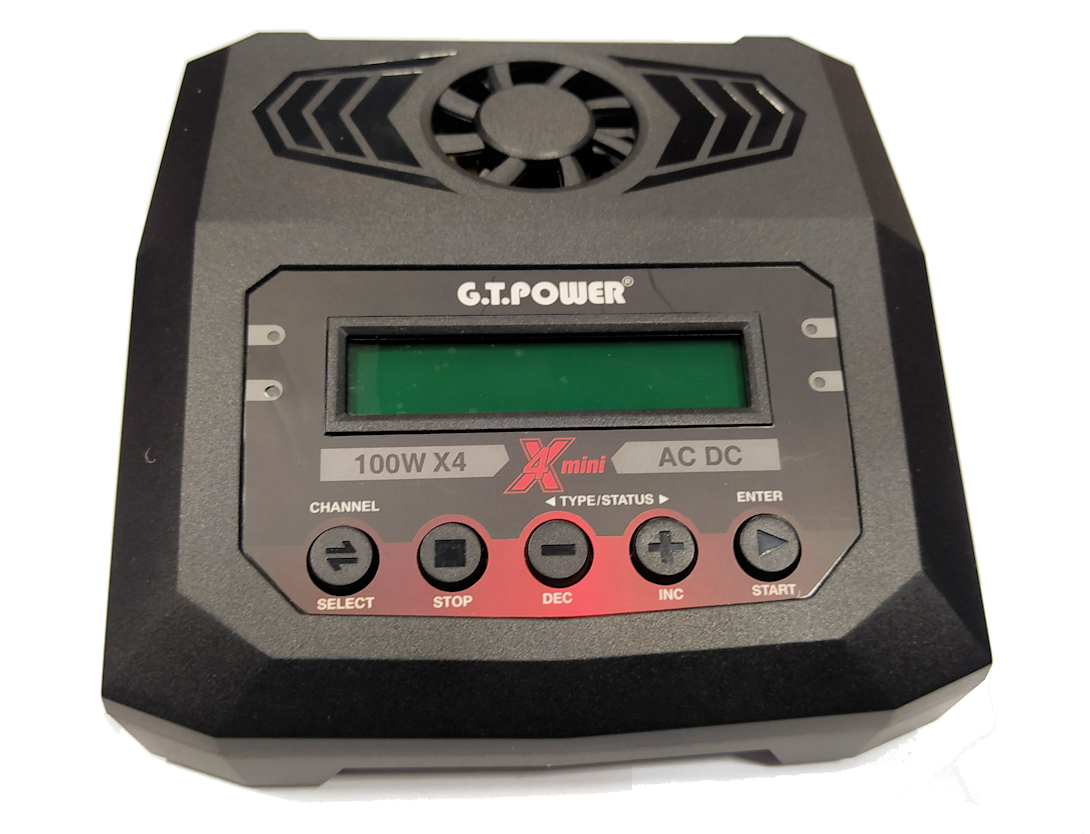

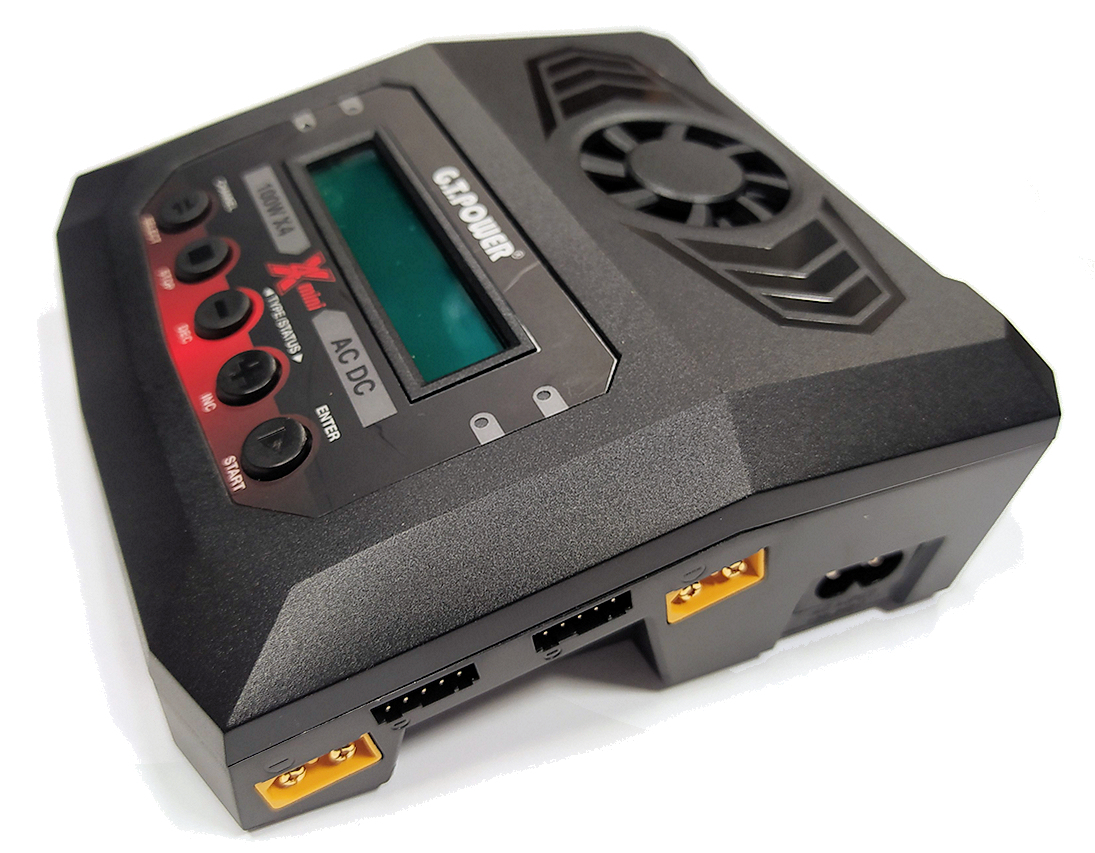

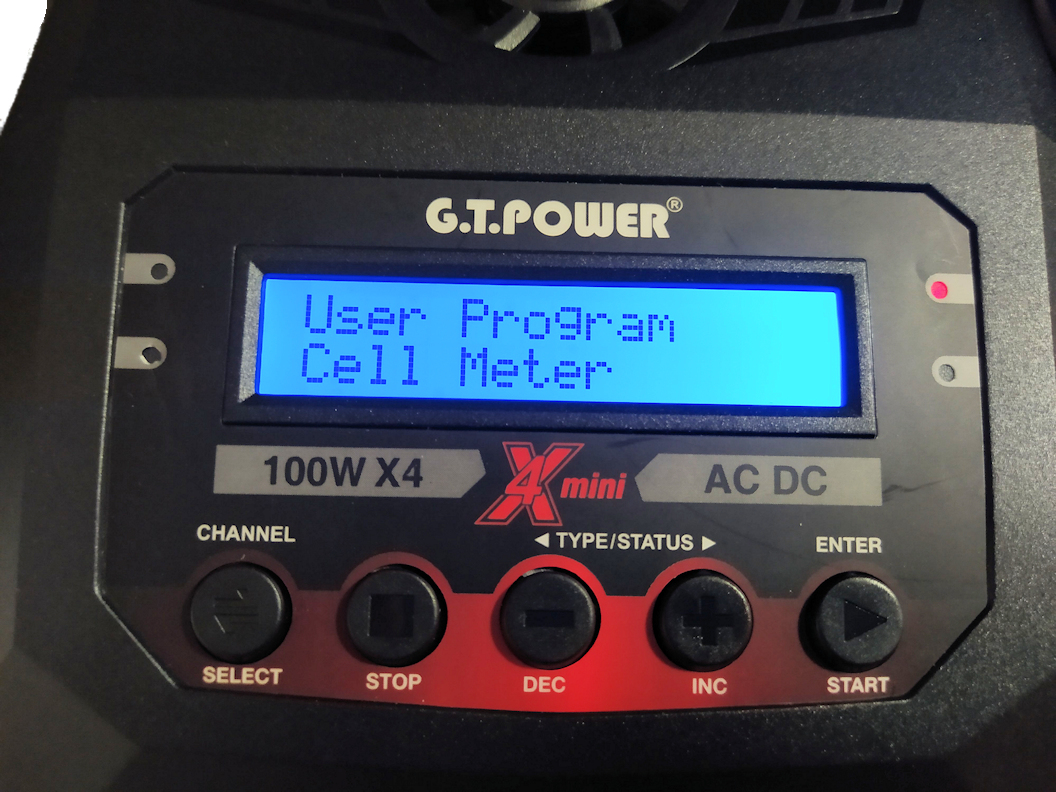

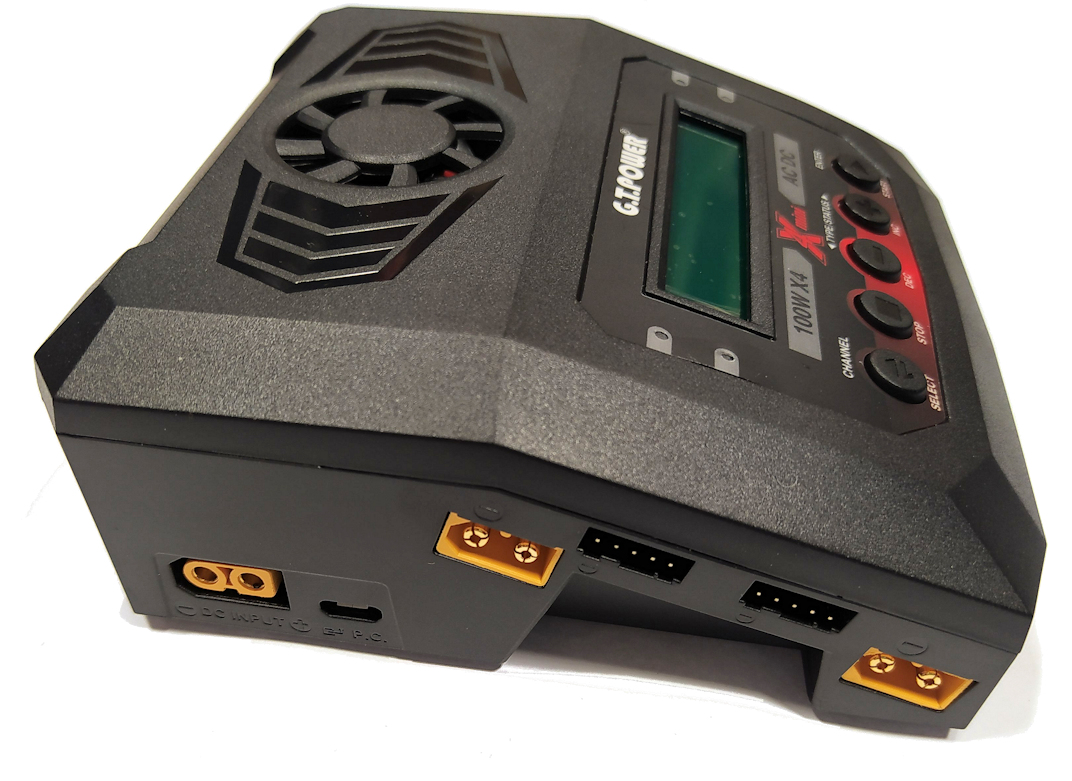

Menu navigation is made easy with a five-button control interface and brightly backlit LCD screen. All the most common battery chemistries are supported including LiPo, LiHV, LiFe, Li-Ion, NiMH, NiCD, and Pb (lead-acid) with XT-60 and JST-XH charging and balancer connectors.

  • Input voltage:  AC: 100-240V,  DC: 19-26V
  • Charge current: 0,1 - 10,0 A  x 4
  • Charge power: AC Max. 100W,  DC Max. 400W (4x100W)
  • Balance current: 500mA
  • Balance precision: 0,01V
  • Battery types: LiPo/LiFe/LiIon/LiHV: 1-4 cells, NiMH/NiCD: 1-8 cells Pb: 2-16V
  • Weight: 554g
  • Dimensions: 137,5 x 141,5 x 55,5mm
